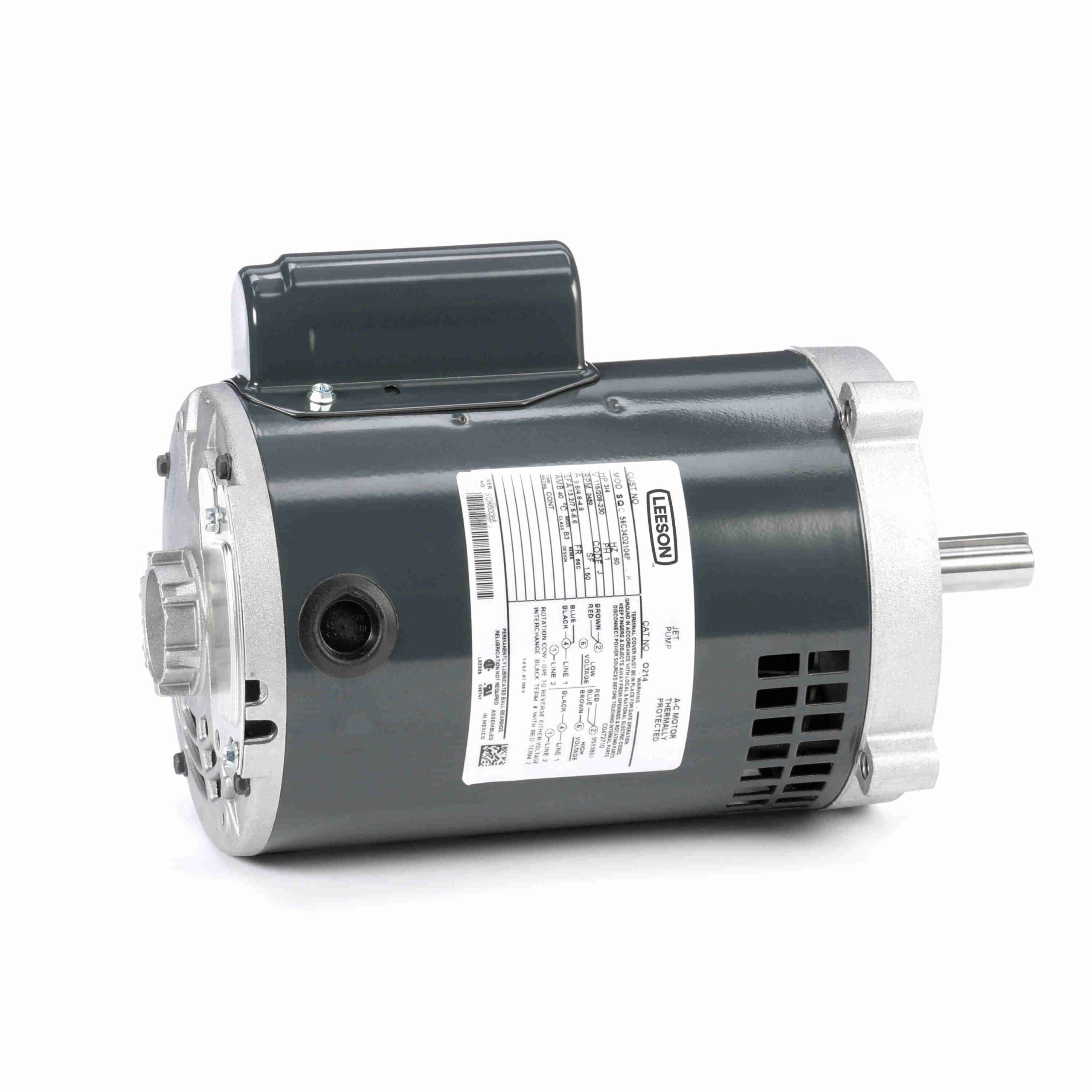

O214 – Leeson
3/4HP, 3600RPM, 56C Fr., ODP, 115|208-230V,
Furnace Motor
Catalog Num.: O214
Part Num.: 056C34D2104

Output (HP): 3/4
Output (kW): 0.55
Speed (RPM): 3600
Voltage (V): 115/208-230
Current (A): 9.8/4.9-4.8
Frequency (Hz): 60.0
Frame: 56C
Phase(s): Single
Poles: 2
Insulation Class: B
Service Factor: 1.5
Efficiency (%): 70
Power Factor: 74
Duty: Cont.
Enclosure: ODP
Num. of Speed(s): Single
Dir. of Rotation: Reversible
Material: Rolled Steel
Mounting: C-Face, Round Body
Bearing(s): 6203
Inverter Ready: NO
Shaft Dia. (In.): 0.625
Shaft Extension (In.): 1.875
Weight (Lbs): 20
Thermal Protection: Automatic
Max Ambient Temperature: 40 °C
Electrical Type: Capacitor Start
Starting Method: Across The Line
Shaft Type: Keyed
Overall Length: 11.56 in
Frame Length: 6.25 in
Shaft Diameter: 0.625 in

Cross-Reference:
Marathon: 56C34D2104,
