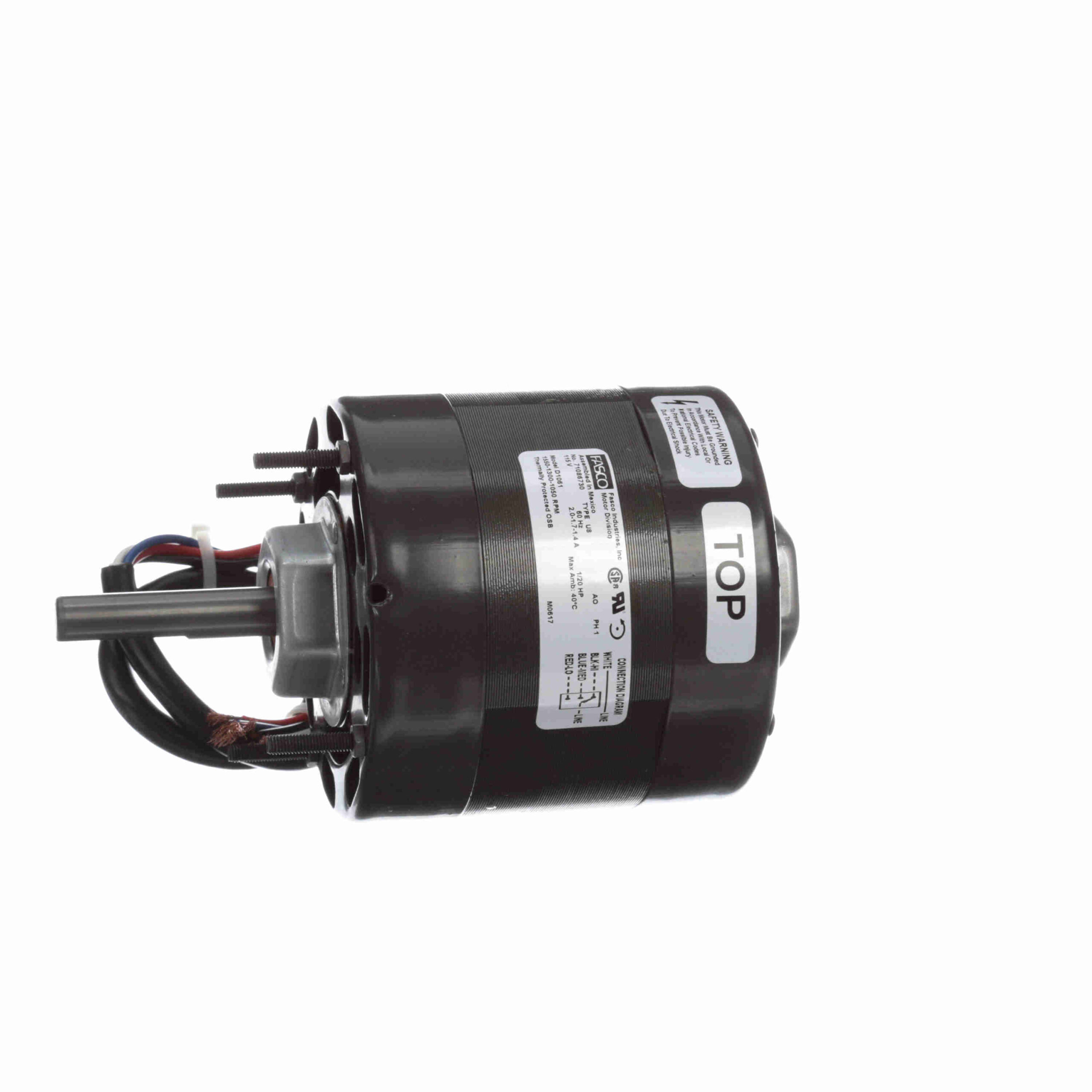

D1061 – FASCO
Furnace Motor, HVAC,
1/20HP, 1550/1300/1050RPM, 4.4″ Fr, OAO, 115V,
OEM Replacement for: 71086730

Output (HP): 1/20
Output (kW): 40
Speed (RPM): 1550/1300/1050
Voltage (V): 115
Current (A): 2.0/1.7/1.4
Frequency (Hz): 60.0
Frame: 4.4″
Phase(s): Single
Poles: 4 & 6
Insulation Class: A
Service Factor: 1.0
Duty: Cont.
Enclosure: OPEN AIR OVER
Num. of Speed(s): 3x
Dir. of Rotation: CCWSE
Material: Rolled Steel
Mounting: Ext. Studs
Bearing(s): Sleeve
Inverter Ready: NO
Shaft Dia. (In.): 1/2
Shaft Extension (In.): 2.75
Weight (Lbs): <10

Cross-Reference:
Direct Replacement for:
Dayton: 1AGF8, 2RB53, 5DVP0, 5DVP1, 5DVP2, 5DVP3, 5DVR7, 48GN26, D335, D170,
7108-2465, 71082425, 7108-6848, 71086848, 302530, 301638, 301639, D0810B2691, g080-dgex-qd,
Greenheck: 7108-2425, 7108-6848, 7108-6730, 7108-6857 (motor1/4" longer, check fit), 310800
