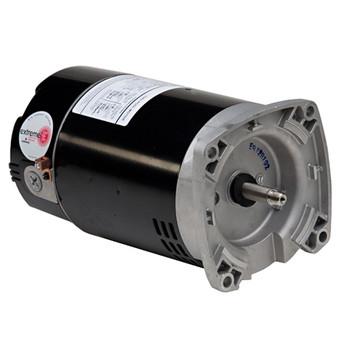

ASB661 – NIDEC
Pool & Spa Motor, Square Flange,
3/4 HP, ODP, 3450RPM
Catalog Num.: ASB661
Model Num.: K063DFT5156023J

Output (HP): 3/4
Output (kW): 0.56
Speed (RPM): 3450
Voltage (V): 115, 208-230
Current (A): 11, 5.9-5.5
Frequency (Hz): 60.0
Frame: 56Y
Phase(s): Single
Poles: 2
Insulation Class: B
Duty: Cont.
Enclosure: ODP
Num. of Speed(s): Single
Dir. of Rotation: CWLE
Material: Rolled Steel
Mounting: Square Flange, Round Body
Bearing(s): 6203
Inverter Ready: No
Shaft Dia. (In.): 0.625
Shaft Extension (In.): 1.875
Weight (Lbs): 24
