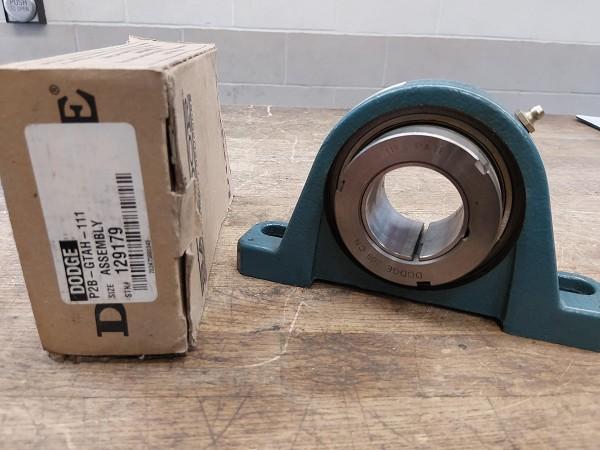

P2B-GTAH-111 – DODGE
Air Handling, Pillow Block, Ball Bearing Unit
2-Bolt Base, 1-11/16 in Bore, Cast Iron Material, Non-Expanding Bearing (Fixed)
Catalog Num.: 129179

Product Type: Pillow Block Ball Bearing Units
Series: 209
Mounting Type: 2-Bolt Base
Housing Type: Two-Bolt Pillow Block
Housing Construction: Solid
Housing Material: Cast Iron
Bore Diameter: 1-11/16 in
Bore Length: 1.85 in
Bolt Center To Center Length: 5.5000 to 6.1900 in
Base To Bore Centerline: 2.1250 in
Duty Type: Standard Duty
Locking Device: Adapter Mounted
Expansion Type: Non-Expansion Bearing (Fixed)
Country of Origin: US
Insert Material: Steel
Max Rpm: 5300 rpm
Type Of Bearing: Ball Bearing
Lubrication: Grease
Dynamic Load Cap.: 7891 lbf
Static Load Cap.: 4906 lbf
Sealing Type: Single-Lip Contact
Sensor Ready: Adapter Required
Shaft Attachment: Push-Pull Adapter
Take Up Frame Size: LD-20,TS-250
Suitable For High Temp App :No
Suitable For Washdown Environment: No
Relubrication Possible: Yes
Standoff Included: No
