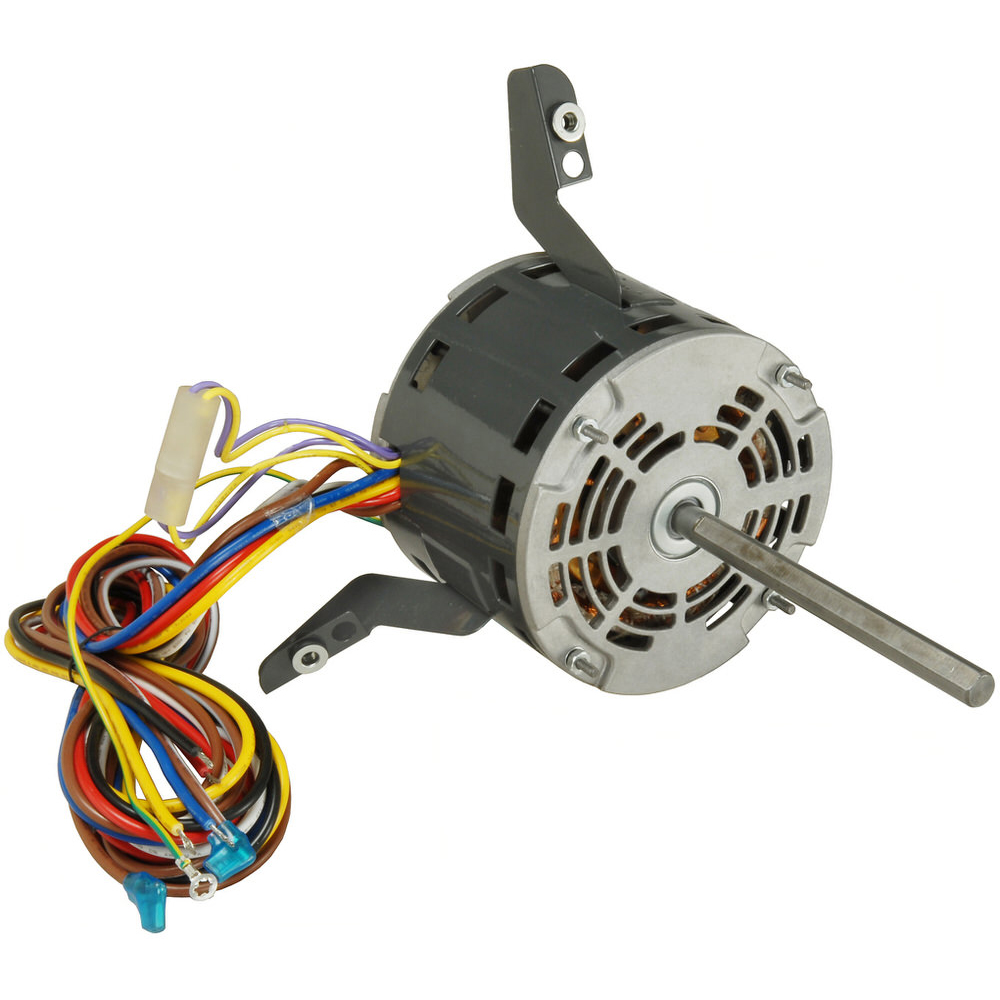

DD-044 – ALLTEMP
Direct Drive Fan Motor, HVAC,
1/4HP, 1075RPM, 4SPD, 208-230V, 2A, 1Ph, FLEX MOUNT,
Capacitor: 5 uF@370V

Output (HP): 1/4
Output (kW): 0.186
Speed (RPM): 1075
Voltage (V): 208-230
Current (A): 1.9
Frequency (Hz): 60.0
Frame: 48Y
Phase(s): Single
Poles: 6
Insulation Class: B
Service Factor: 1.0
Duty: Cont.
Enclosure: Open
Num. of Speed(s): 4x
Dir. of Rotation: Reversible
Material: Rolled Steel
Mounting: Ext. Studs 4x
Bearing(s): Ball
Inverter Ready: NO
Shaft Dia. (In): 1/2
Shaft Extension (In): 6″

Cross-Reference:
3784, D1733, FM1026,
