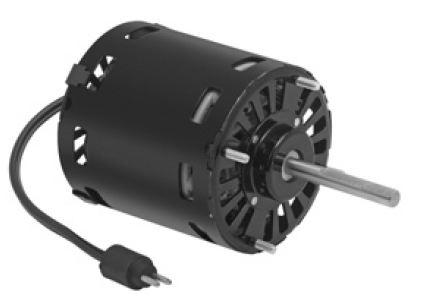

D1120 – FASCO
Furnace Motor
1/20HP, 1500RPM, 3.3″ Fr., OAO, 115V,
Catalog Num.: D1120

Output (HP): 1/20
Output (kW): 0.04
Speed (RPM): 1500
Voltage (V): 115
Current (A): 2.1
Frequency (Hz): 60.0
Frame: 3.3″
Phase(s): Single
Poles: 4
Insulation Class: B
Service Factor: 1.0
Duty: Cont.
Enclosure: OAO
Num. of Speed(s): Single
Dir. of Rotation: CWDE
Material: Rolled Steel
Mounting: Ext. Studs
Bearing(s): Sleeve
Inverter Ready: No
Shaft Dia. (In.): 0.313
Shaft Extension (In.): 2.5″
Weight (Lbs): 5.0

Cross-Reference:
KEEPRITE REFRIGERATION (CHECK KRACK LISTINGS)
1043336, 7163-8722, 7173-1617, 1043336,
FASCO: 716338722, D1101, D132, DLL20, 1047778, 71902892,
AOSmith: 9633
Dayton: 48GN43
