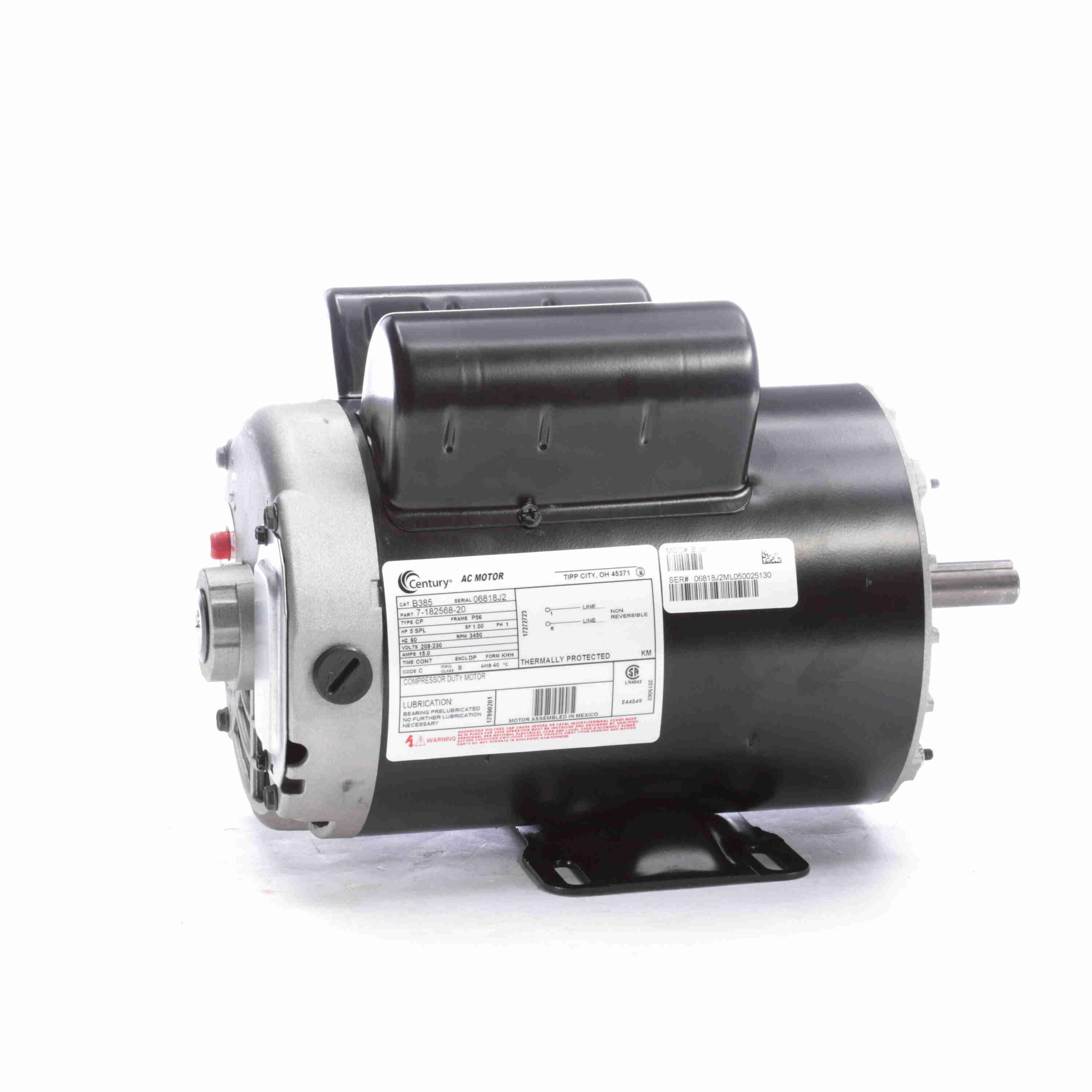

B385 – CENTURY
Compressor, Special Rating, Farm Duty,
5(SPL)HP, 3450RPM, 208-230V, P56, ODP, Ball Bearings
Cap Start, Cap Run,

Output (HP): 5 SPL
Output (kW): 3.72
Speed (RPM): 3450
Voltage (V): 208-230
Current (A): 15.0
Frequency (Hz): 60.0
Frame: 56
Phase(s): Single
Poles: 2
Insulation Class: B
Service Factor: 1.0
Duty: Cont.
Enclosure: Open, Drip Proof, ODP
Num. of Speed(s): Single
Dir. of Rotation: CCWSE
Material: Rolled Steel
Mounting: Rigid Base, F1
Bearing(s): Ball
Inverter Ready: NO
Shaft Dia. (In.): 5/8
Shaft Extension (In.): 1-7/8
Weight (Lbs): <36

Cross-Reference:
A.O. Smith: 182568,
Century: 141443, 150776, 164593, 164594, 164883, 164886, 165014, 165129, 165339, 165345, 165347, 165430, 165482, 168927, 173181, 173719, 177513, 177567, 177568, 177595, 182568, 182711,
Others: MC09000AV, 7-182568-20, 182568, CP1502M, 141443, 150776, 164593, 164594, 164883, 164886, 165014, 165129, 165339, 165345, 165347, 165430, 165482, 168927, 173181, 173719, 173894, 177513, 177567, 177568, 177595, 182568, 182711, 194160, 2-194160-01, MC024800AV, T63XWBSS1486, 5KCR48UN2553Y, 9040, M9040,
