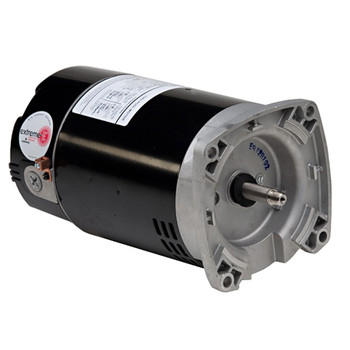

ASB841 - NIDEC - 1HP, 3450RPM, 115/208-230V, 56Y, ODP

ASB841 – NIDEC – 1HP, 3450RPM, 115/208-230V, 56Y, ODP

1.5HP, 3450, 115/208-230, 48Y, ODP,

Out of stock

SKU ASB841 Categories , , , , , Tags , , , , , , , , Brand:

$422.04

Out of stock

ASB841 – NIDEC – 1HP, 3450RPM, 115/208-230V, 56Y, ODP

SKU ASB841 Categories , , , , , Tags , , , , , , , , Brand:

ASB841 – NIDEC
Pool & Spa Motor, Square Flange,
1.0 HP, 3450rpm, 56Y Fr., ODP, 115V|208-230V,
General Purpose,
Catalog Num.: ASB841
Model Num.: K063DFU5157023J

Output (HP): 1.0
Output (kW): 0.75
Speed (RPM): 3450
Voltage (V): 115/208-230
Current (A): 14.4/7.6-7.4
Frequency (Hz): 60.0
Frame: 56Y
Phase(s): Single
Poles: 2
Insulation Class: B
Duty: Cont.
Enclosure: ODP
Num. of Speed(s): Single
Dir. of Rotation: CWLE
Material: Rolled Steel
Mounting: Square Flange, C-Flange
Bearing(s): Ball
Inverter Ready: NO
Shaft Dia. (In.): 0.625
Shaft Extension (In.): 1.875
Weight (Lbs): 25

Cross-Reference:

Weight 30 lbs
Manufacturer:

Nidec
Agency Approval:

CSA, UL
HP:

1.0
Voltage:

115/208-230
Current:

14.4/7.6-7.4
RPM:

3450
Frame:

56Y
Enclosure:

ODP
Frequency:

60.0
Model/Family/Series/Purpose

Pool & Spa Pump
Frame Material:

Rolled Steel
Insulation Class:

B
Number of Speeds:

Single
Number of Poles:

2
Service Factor:

1.0
Output (kW):

0.75
KVA:

J
Direction of Rotation:

CWLE
DE Bearing:

Ball Bearing
ODE Bearing:

Ball Bearing
VFD/Inverter Ready:

No
Duty:

CONT.
Phase(s):

Single
Shaft Diameter:

0.625
Shaft Length:

1.875
Length:

13.71
Weight:

25
Mounting Arrangement:

Square Flange, Round Body
Starting Methods:

DOL
Motor Standards:

NEMA
Design Code:

B
Front Face Code:

C-Flange, Square Flange
AC/DC

AC
