67013-0

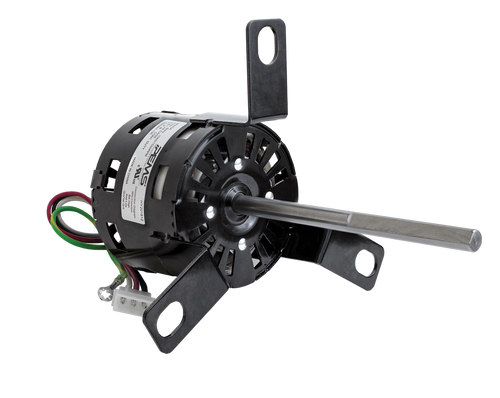

67013-0 – PEMS – 0.275HP, 1050/1550RPM, 115V, PEN VENT, 2SPD, CWSE

67013-0 – PEMS – 0.275HP, 1050/1550RPM, 115V, PEN VENT, 2SPD, CWSE

.275HP 1050/1550RPM 115V

Out of stock

SKU 67013-0 Categories , , , , , , Tags , , Brand: ,

$730.14

Out of stock

67013-0 – PEMS
PEN VENT, HVAC,
0.275HP, 1050/1550RPM, 115V, 2SPD, CWSE, 3.2A,
Replacement for: JE2K019N, JE2K019N, P12VR, 71903521 & 71903521

Output (HP): 1/7
Output (kW): 0.11
Speed (RPM): 1550/1050
Voltage (V): 115
Current (A): 3.2/2.2
Frequency (Hz): 60.0
Frame: 3.3″ Dia.
Phase(s): Single
Poles: 4|6
Insulation Class: B
Duty: Cont.
Enclosure:
Num. of Speed(s): 2
Dir. of Rotation: CWSE
Material: Rolled Steel
Mounting: Bracket, 3x arms
Bearing(s): Sleeve
Inverter Ready: NO
Shaft Dia. (In.): 3/8
Shaft Extension (In.): 5-1/4
Weight (Lbs): 9.47

Cross-Reference:
PENBERRY: JE2K019, JE2K019N, P12VR
Fasco: 71903521, 7190-3521

Manufacturer:

PEMS
HP:

1/7
Voltage:

115
Current:

2.5, 3.6
RPM:

1550, 1050
Frame:

3.3" Dia.
Enclosure:

OAO
Frequency:

60.0
Model/Family/Series/Purpose

PEN VENT, HVAC
Frame Material:

Rolled Steel
Insulation Class:

B
Number of Speeds:

2
Number of Poles:

4|6
Output (kW):

0.11
Direction of Rotation:

CWSE
DE Bearing:

Sleeve
ODE Bearing:

Sleeve
VFD/Inverter Ready:

No
Duty:

CONT. AIR OVER
Phase(s):

Single
Shaft Diameter:

3/8
Shaft Length:

5-1/4
Length:

12.1
Weight:

9.5
Width:

15.85
Height:

11.8
Mounting Arrangement:

Bracket
Starting Methods:

DOL
Motor Standards:

NEMA
Front Face Code:

Standard, Bracket
AC/DC

AC
