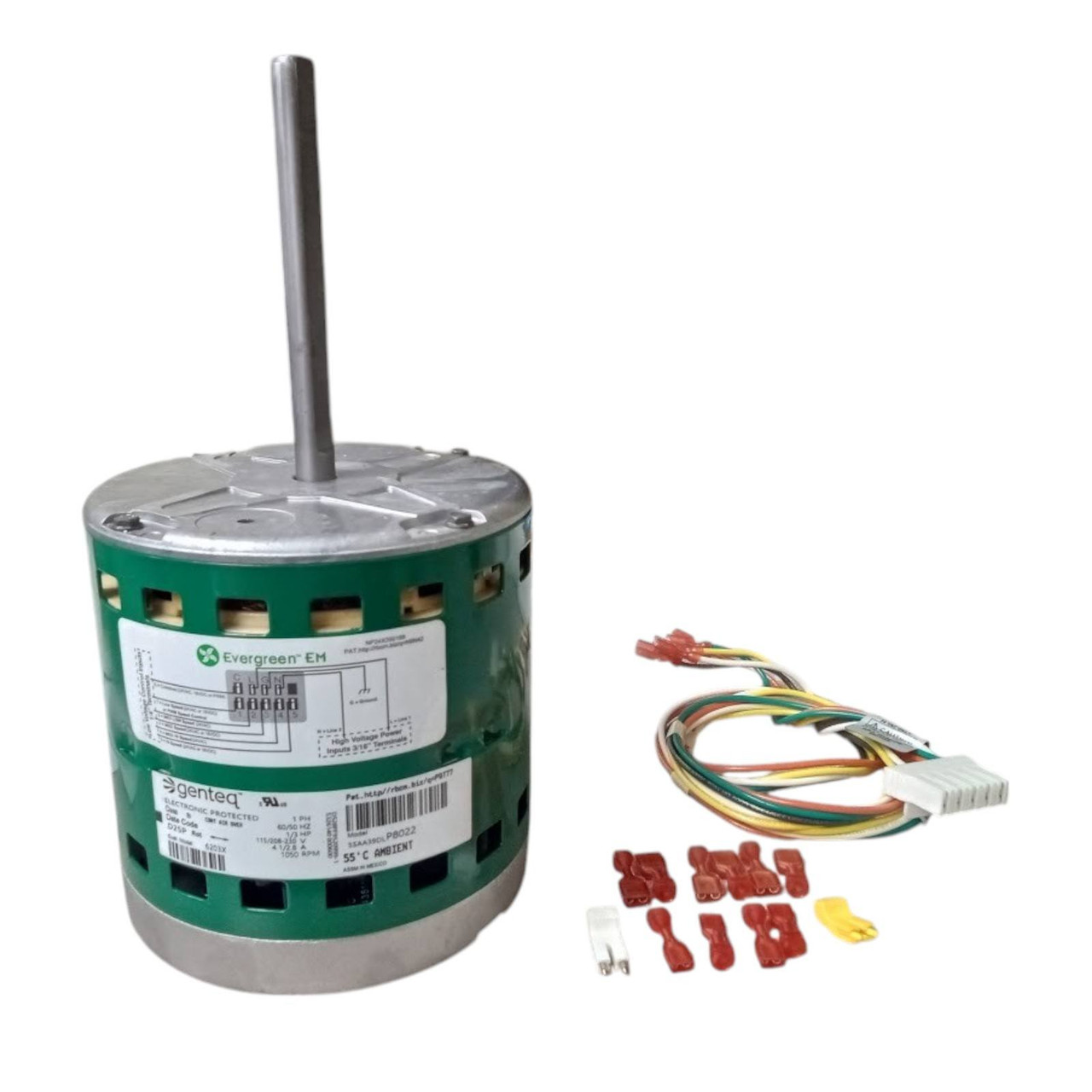

6205X – GENTEQ
Evergreen, ECM, Furnace Motor,
1/2HP, ECM X13, 1Ph , 115/230V, 1075RPM, AOA,
Belly Band, 48Fr,
Catalog Num.: 6205X

Output (HP): 1/2
Output (kW): 0.37
Speed (RPM): 1050
Voltage (V): 115/208-230
Current (A): 6.4/4.1
Frequency (Hz): 60.0
Frame: 48
Phase(s): Single
Poles: 12
Insulation Class: B
Service Factor: 1.0
Duty: Cont.
Enclosure: Open Air Over
Num. of Speed(s): Single
Dir. of Rotation: Reversible
Material: Rolled Steel
Mounting: Belly Band
Bearing(s): Ball
Inverter Ready: N/A (Built in)
Shaft Dia. (In.): 0.5
Shaft Extension (In.): 4.92
Weight (Lbs): 13

Cross-Reference:
5SME39HXL, 5SME39HXL443,
replaces YORK ECM X13 02435887000 IN mod#TM9X060B12MP11A,
S1-0243584500, 5SM39HXL011A, S1-02435846000, TMX8, TMX9, TMX9E, 55SME39HXL113, HD44LR121,
Trane: MOT12256,
1186428 (HD44MR123) WITH 5K002 BRACKET
LENNOX: 81W33 607363-02, 51-107164-00, 5SBA39FLP7037,
