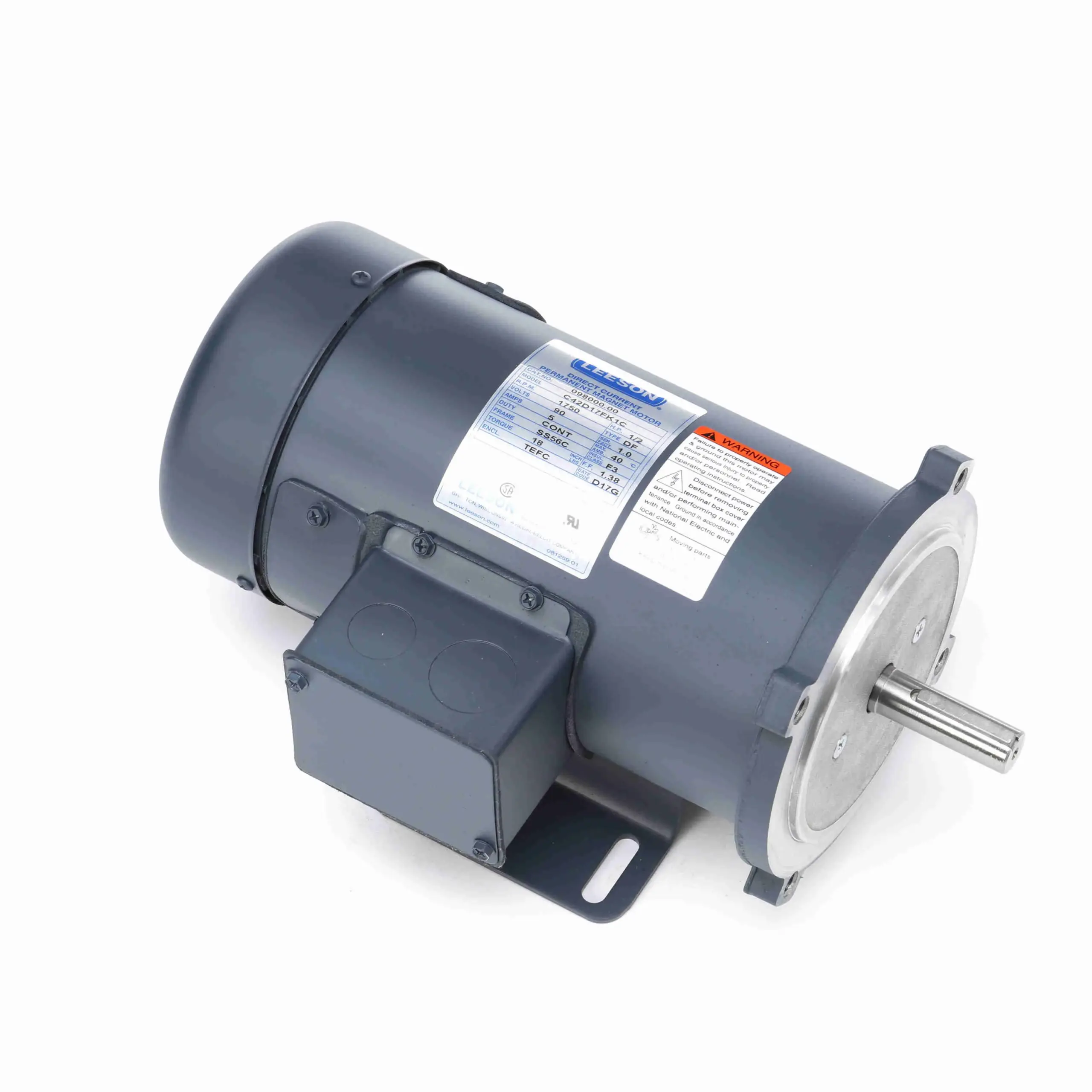

Leeson – 098000.00
Totally Enclosed DC Motor
1/2HP, 1750RPM, 56C, TEFC, 90VDC,
Permanent Magnet, DC Motor
Model Num.: C42D17FK1
Catalog Num.: 098000

Output (HP): 1/2
Output (kW): 0.37
Voltage (VDC): 90.0
Current (A): 5.0
Speed (RPM): 1750
Service Factor: 1
Efficiency (%): 81.4
Duty: Continuous
Insulation Class: F
Frame: SS56C
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection
Ambient Temperature (°C): 40.0
Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203
UL: Recognized
CSA: Y
CE: N
Rotation: Reversible
Mounting: Rigid C base
Overall Length: 11.81 in
Frame Length: 7.50 in
Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
