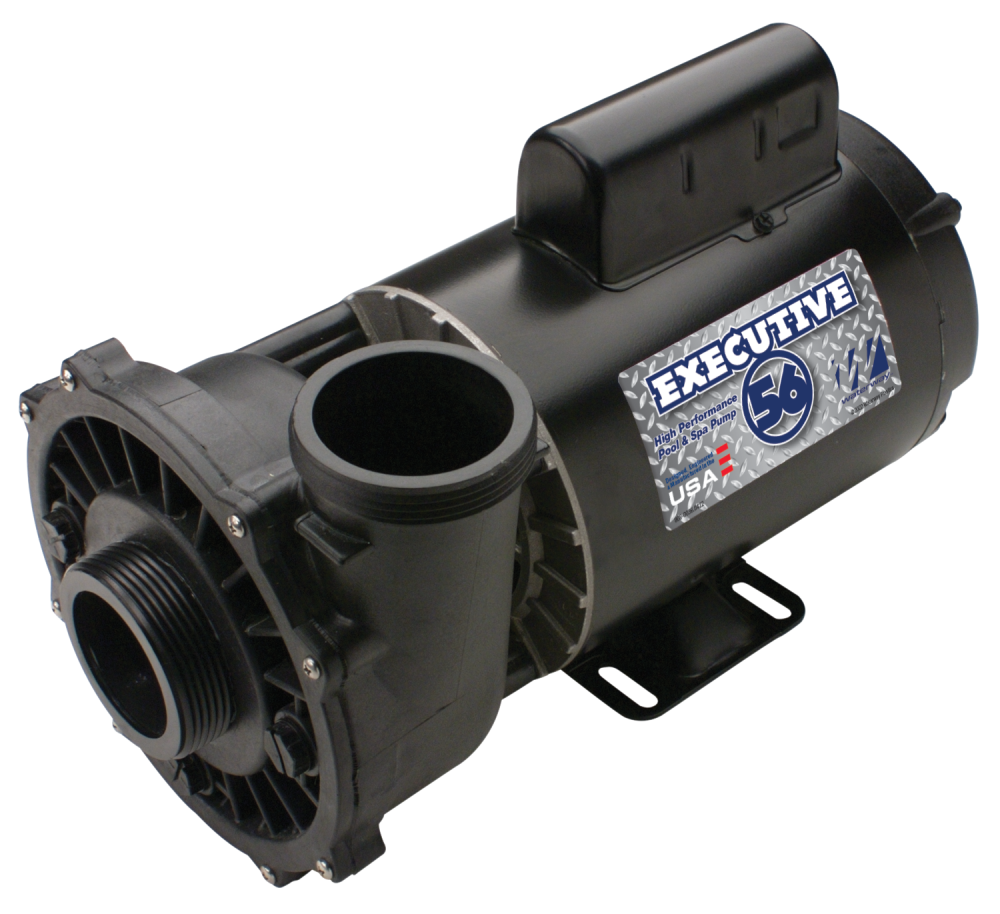

3720821-1D - WATERWAY PLASTICS - PUMP EXEC, 2HP, 56FR, 2SPD, 2"

3720821-1D – WATERWAY PLASTICS – PUMP EXEC, 2HP, 56FR, 2SPD, 2″

PUMP EXEC 2HP 56FR 2 SPD 2″

Out of stock

SKU 3720821-1D Categories , , , , , , Tags , , , , , , , , , , , , Brand:

$738.33

Out of stock

3720821-1D – WATERWAY PLASTICS – PUMP EXEC, 2HP, 56FR, 2SPD, 2″

SKU 3720821-1D Categories , , , , , , Tags , , , , , , , , , , , , Brand:

Waterway Plastics – 3720821-1D
Exec. Pump
2HP, 2Spd, 2″ In/2″ Ds, 56Fr, 230V, 8.0/3.0A, 3450/1725RPM, ODP

Horse Power (HP): 2.0
Output Power (kW): 1.5
Voltage (V): 208-230
Current (A): 3/8
Phase(s): Single
Frequency (Hz): 60.0
Speed (RPM): 3450/1725
Num. of Speeds: Two
Poles: 4/2
Union(s): 2″/2″
Frame: 56C
Enclosure: ODP
Type: Split Cap, Cap Start, Cap Run
Start Method: DOL
Thermal Protection: Yes
Max Ambient Temp: 40C
Dimensions (HxWxL): 9.08″ x8.05″ x8.875″
Front Face Code: Flange

Cross-Reference:

Manufacturer:

Waterway Plastics
HP:

2.0
Voltage:

208-230
Current:

3.0, 8.0
RPM:

3450, 1725
Frame:

56
Enclosure:

ODP
Frequency:

60.0
Model/Family/Series/Purpose

Pool Pump
Frame Material:

Rolled Steel
Number of Speeds:

Two
Number of Poles:

4, 2
Service Factor:

1.15
Output (kW):

1.5
Direction of Rotation:

CCW
Duty:

CONT
Phase(s):

Single
Shaft Diameter:

0.625
Mounting Arrangement:

Flange, F1
Starting Methods:

DOL
Motor Standards:

NEMA
Front Face Code:

Flange
AC/DC

AC
