1814T – LEESON – #411814 – TRANSITION BASE – 143/5T TO 182/4

TRANSITION BASE 143/5T TO 182/4

Out of stock

SKU 1814T Categories Accessories, Misc Motors Parts, Motor Bases Tags #411814, 1814T, LEESON, TRANSITION BASE Brand: Leeson, Regal-Rexnord

$230.74

Out of stock

1814T – LEESON – #411814 – TRANSITION BASE – 143/5T TO 182/4

SKU 1814T Categories Accessories, Misc Motors Parts, Motor Bases Tags #411814, 1814T, LEESON, TRANSITION BASE Brand: Leeson, Regal-Rexnord

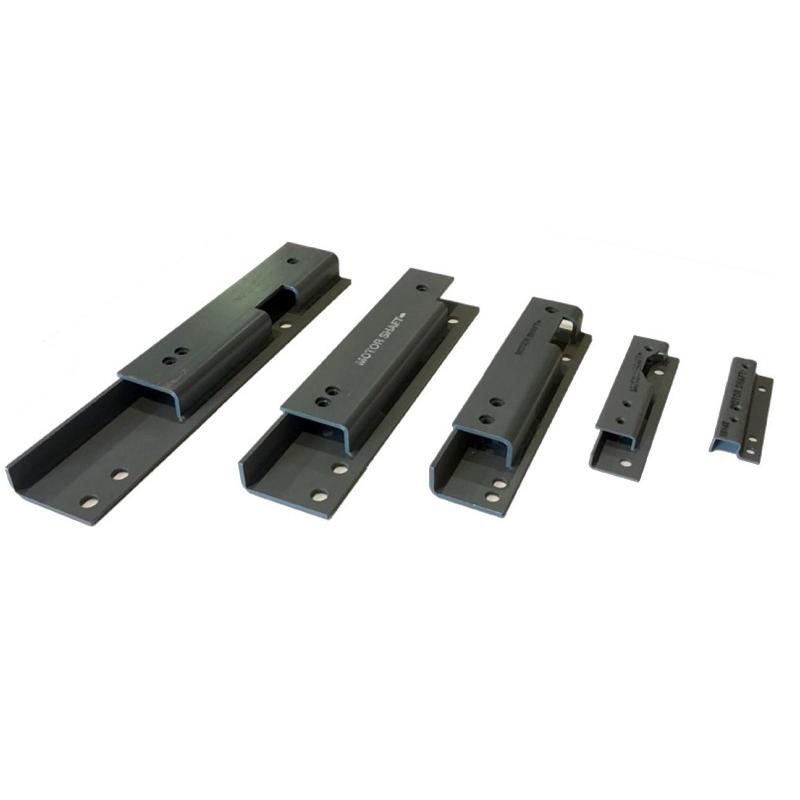

Leeson – 140T TO 180 – TRANSITION BASE
411814

Compensate for the difference in mounting dimensions and shaft height of a rigid base NEMA T frame to the next higher NEMA U frame
This makes it possible to replace a 10 hp NEMA 254U frame motor with a 10 hp NEMA 215T frame motor without modifying the basic installation
Horizontal mounting, shimming may be needed for direct coupled loads

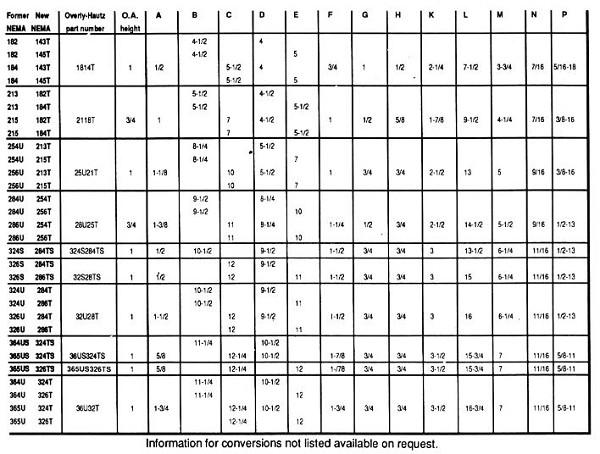

– 143T/145T T frame converts
– 182/184 number to U

Manufacturer:	Leeson
Frame:	140T to 180U
Model/Family/Series/Purpose	Transition Base
Frame Material:	Rolled Steel
Length:	7-1/2
Width:	2-1/4
Height:	1
Mounting Arrangement:	F1/F2
