Baldor – 09-1309 – Painted “GOLD”
C-Flange
C Flange for Fr: 254U|256U|254T|256T
Catalog Number: 09-1309
Baldor Motors Accessories
Frame Size:254U|256U|254T|256T
C Flange

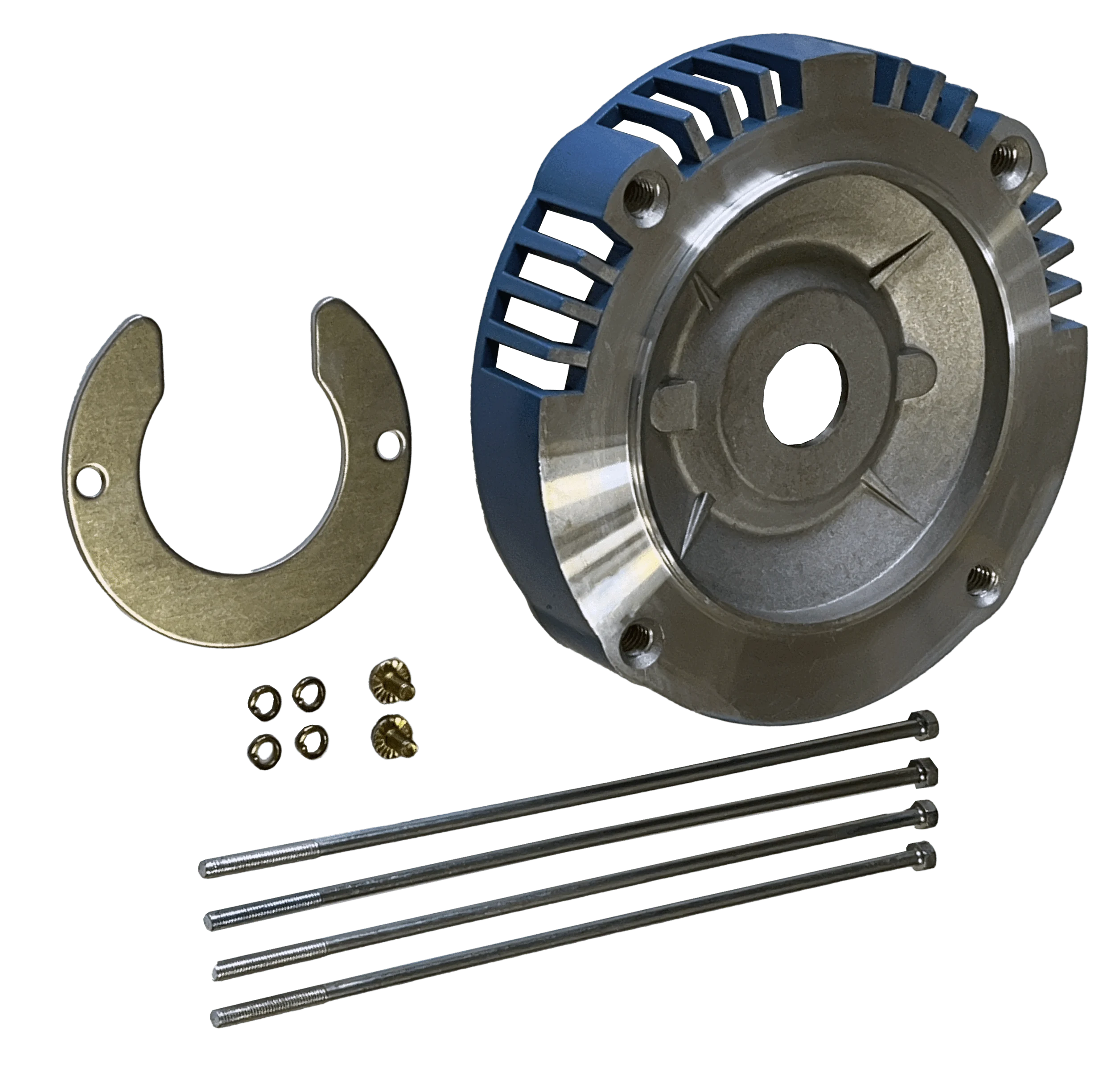

Complete kit with all hardware necessary for converting Baldor
56 through 445T frame rigid base motors to “C-Face” mounting with base.
| Weight | 12 lbs |
|---|---|
| Manufacturer: | Baldor |
| Agency Approval: | CSA, UL |
| Frame: | 254U, 256U,254T,256T |
| Enclosure: | TEFC |
| Model/Family/Series/Purpose | C-Face, Flange Kit |
| Frame Material: | Cst Iron |
| DE Bearing: | 6309 |
| Length: | 13" |
| Width: | 10" |
| Height: | 12" |
| Mounting Arrangement: | C-Face, Bolt Holes |
| Motor Standards: | NEMA |
| Front Face Code: | C-Face |
