WILO – Z-15 BN5-Z [NLA]
Circ. Pump

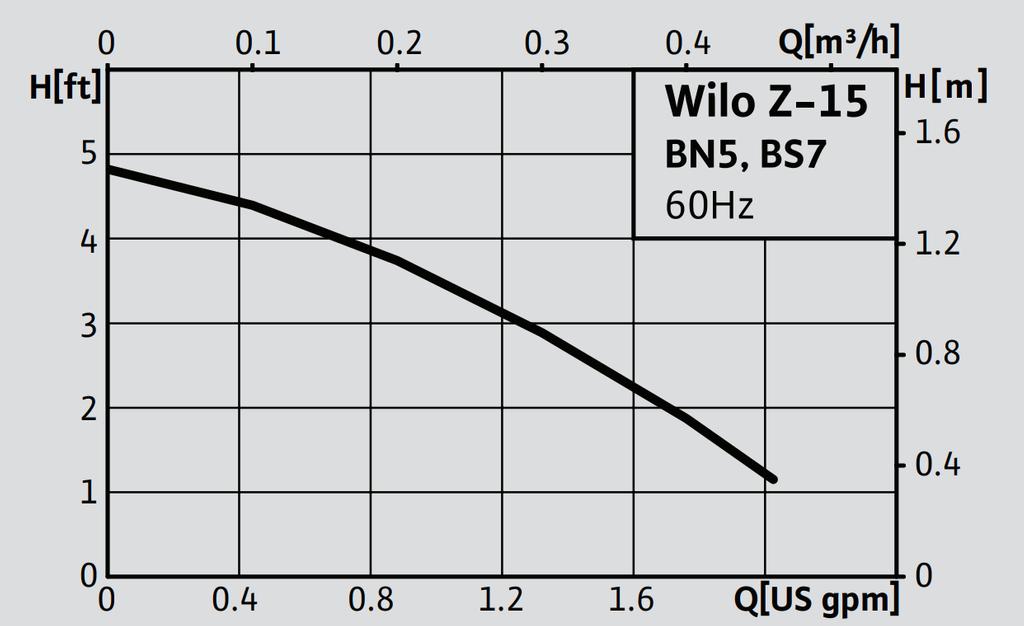

Single Speed, 2.0GPM, 4.8′ Head
SKU: 4118259

Note: This product has been discontinued by the manufacturer (Oct/7/2021)
See SKU: 2704549 for suggested alternative product.

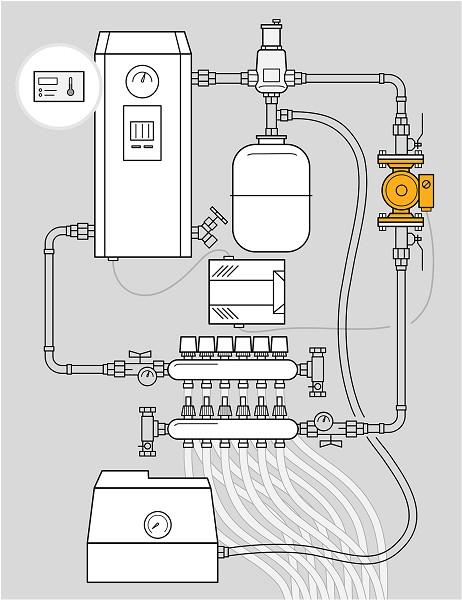

Wet rotor circulation pump, with FNPT hreaded connection. Cast iron body for hot-water heating systems of all kinds, industrial circulation systems, cold-water systems and air-conditioning systems.

Features:
Suitable for any installation position with horizontal shaft; terminal box in 3-6-9-12 o’clock position
Impedance protected motor, motor protection not required
Cable entry both sides of terminal box
Quick connection spring clips for simple electrical connection
Steel Terminal Box
Fits all Competitor’s Models
Powerful Starting Torque
Ultra Quiet
Reliable Wet Rotor Technology
Optional Check Flange Set
Automatically Vented
Max Pressure: 140(psi)/10(Bar)
Max rpm: 3000
Max flow: 9(GPM)/25(L/min)
Max Temperature: 14~230(*F) (-10~110*C)

Materials:
Pump housing: Grey cast iron (EN-GJL200)
Impeller: Engineered Composite (PP – 40% GF)
Shaft: Stainless steel (Cr)
Bearing: Metal-impregnated carbon
