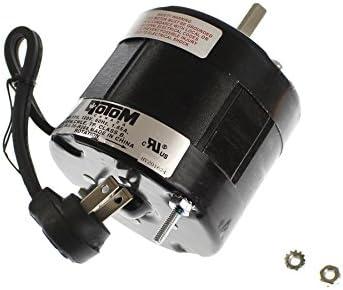

R266 – ROTOM
HVAC, Ventilation Motor,
Refrigeration, Condensor, Furnace,
1/20HP, 1550RPM, 115V, 1.65A, CW, TE, 3.3 Dia. Body, SLEEVE BEARINGS
Catalog Num.: O6-R266

Output (HP): 1/20
Output (kW): 0.04
Speed (RPM): 1550
Voltage (V): 115
Current (A): 1.65
Frequency (Hz): 60.0
Frame: 3.3″ dia.
Phase(s): Single
Poles: 4
Insulation Class: F
Duty: Cont.
Enclosure: Totaly Enclosed (TE)
Num. of Speed(s): Single
Dir. of Rotation: CW
Max Ambient Temp: 80 °C
Material: Rolled Steel
Mounting: Bracket, 2x Ext. Studs
Bearing(s): Sleeve
Inverter Ready: NO
Shaft Dia. (In): 5/16
Shaft Runout (In): 1.5
Max Flow (CFM): 141

For Use With: BK100, RH2000-200, 013024 (with brackets 4115)

Cross-Reference:
BK-100, BK100, QB-200, RH2000-200, 07779800002210, 2868513037, 8213915066, 8213917120, BK100, ESM62BK, QB200LT, RB25, SS266
