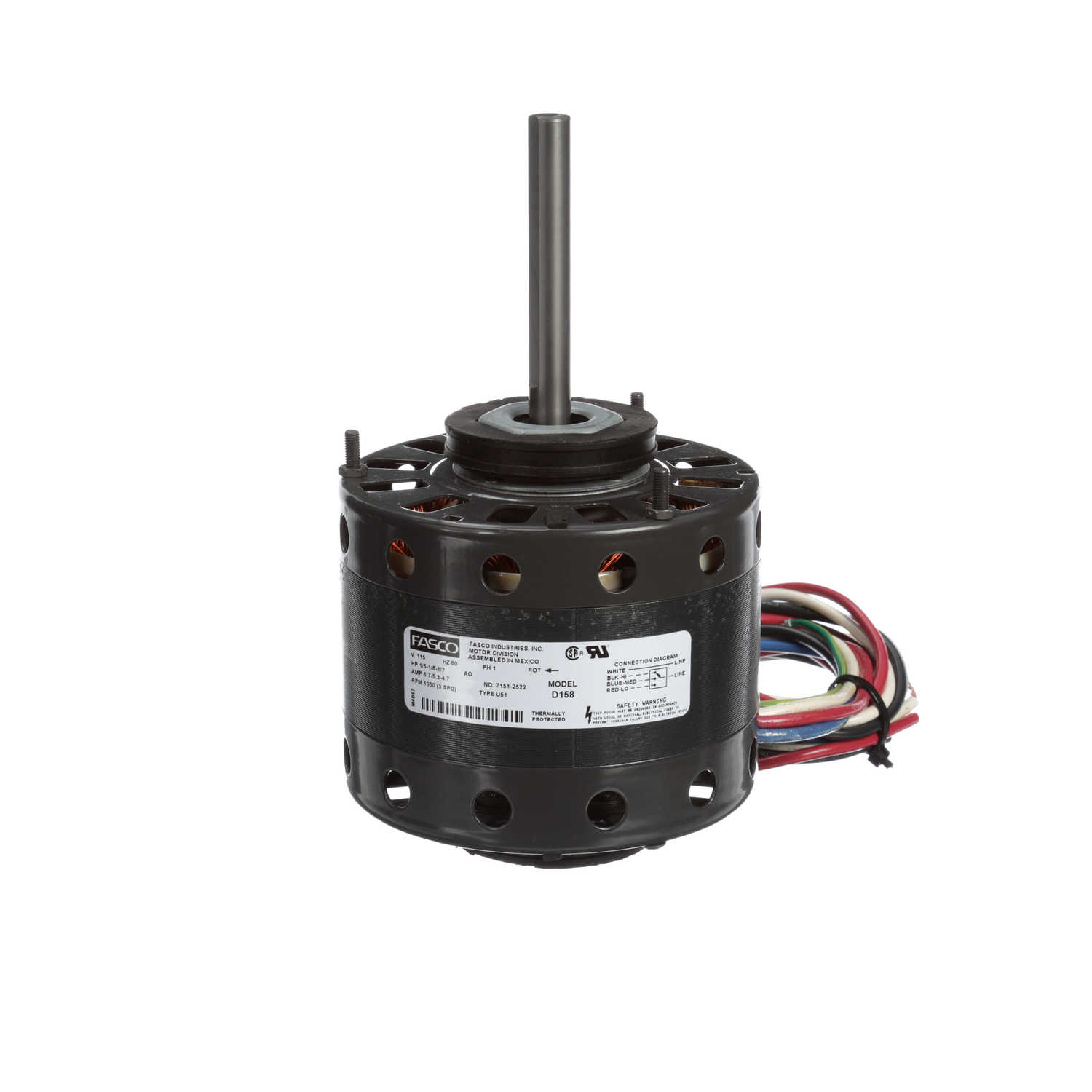

D158 – [NLA] – FASCO – 1/5~1/7HP, 1050RPM, 115V, 3SP, 42Fr, OAO

D158 – [NLA] – FASCO
1/5~1/7HP, 1050RPM, 42YFr, OAO, 115V,
Direct Drive, Fan Blower Motor, Shaded Pole,
Catalog Number: D158

Output (HP): 1/5, 1/6, 1/5
Output (kW): 0.15
Speed (RPM): 1075
Voltage: 115V
Freq. (Hz): 60.0
Current: 6.7~4.7A
Frame: 42Y
Frame Material: Rolled Steel
Phase(s): 1
Num. of Poles: 6
Num. of Speed(s): 3x
Dir. of Rotation: CWLE
Enclosure: OAO
Insulation Class: A
Mounting: Resilient
Weight: <12Lbs
Shaft Dia.: 0.5"
Shaft Runout: 4.2"

Cross Reference:
Century: 9403
Dayton: 3RCV5
GE: 5KSP29KK1542S
Lennox: 322P018, P-8-3527, P-8-3529, P-8-3789, P-8-3790, P-8-9662,

Weight	10.8 lbs
Manufacturer:	Fasco
Agency Approval:	CSA, UL
HP:	1/5~1/7
Voltage:	115
Current:	6.7~4.7A
RPM:	1050
Frame:	42Y
Enclosure:	OAO
Frequency:	60.0
Model/Family/Series/Purpose	Shaded Pole, Direct Drive, Fan Blower, HVAC
Frame Material:	Rolled Steel
Insulation Class:	A
Number of Speeds:	3x
Number of Poles:	6
Service Factor:	1.0
Output (kW):	0.15
Direction of Rotation:	CWLE
DE Bearing:	Sleeve
ODE Bearing:	Sleeve
Duty:	CONT.
Phase(s):	Single
Shaft Diameter:	0.5"
Shaft Runout:	4.16"
Mounting Arrangement:	Resilient Mount, Belly Band
Starting Methods:	DOL,
Motor Standards:	NEMA
Leads (Qty, Size):	5x
Front Face Code:	Standard
AC/DC	AC
