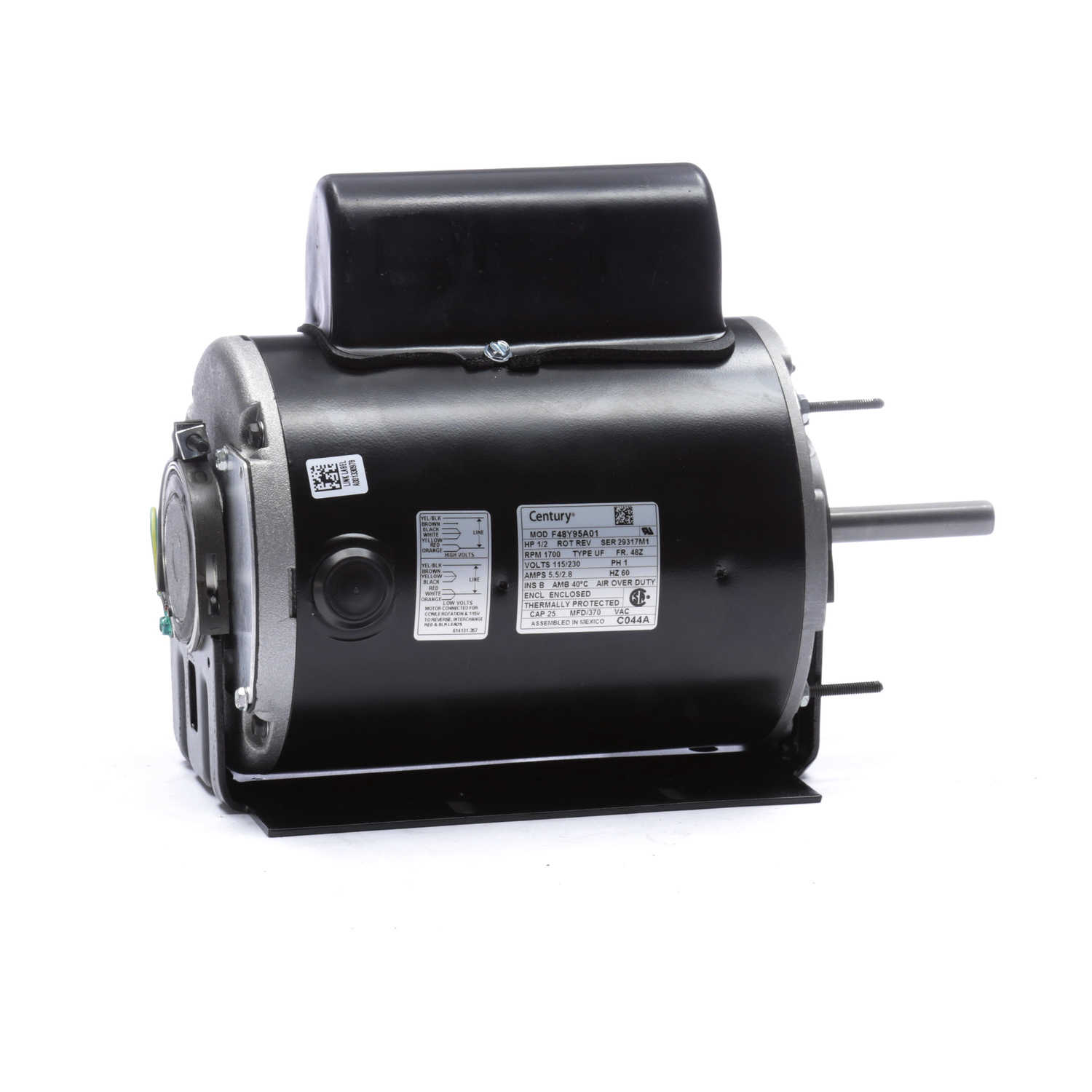

C044A - Century - FARM DUTY, 1/2HP, 115/230V, 1700RPM, 48FR,

C044A – Century – FARM DUTY, 1/2HP, 115/230V, 1700RPM, 48FR,

1/2HP 115/230V 1700RPM 48FR

Out of stock

SKU C044A Categories , , , , , , , , , , , Tags , , , , , , , , , , , Brand: ,

$500.69

Out of stock

C044A – Century – FARM DUTY, 1/2HP, 115/230V, 1700RPM, 48FR,

SKU C044A Categories , , , , , , , , , , , Tags , , , , , , , , , , , Brand: ,

C044A – Century
1/2HP, 1700RPM, F48Z, TEAO, 115V|230V,
Farm Duty, Furnace Motor,
Catalogue Num.: C044A
Run Cap: 25uF@370V

Output (HP): 1/2
Output (kW): 0.37
Speed (RPM): 1700
Voltage (V): 115/230
Freq. (Hz): 60.0
Current (A): 5.5/2.8
Frame: F48Z
Frame Material: Rolled Steel
Phase(s): Single
Num. of Poles: 4
Num. of Speed(s): Single
Dir. of Rotation: Reversible
Enclosure: TEAO
Insulation Class: B
Mounting: Resilient Mount
Weight: <24Lbs
Shaft Dia.: 0.5″
Shaft Length: 3.14″

Cross Reference:

Manufacturer:

Century
Agency Approval:

CSA, UL
HP:

1/2
Voltage:

115/230
Current:

5.5/2.8A
RPM:

1700
Frame:

F48Y
Enclosure:

TEAO
Frequency:

60.0
Model/Family/Series/Purpose

Furnace Motor, Farm Duty
Frame Material:

Rolled Steel
Insulation Class:

B
Number of Speeds:

Single
Number of Poles:

4
Service Factor:

1.0
Output (kW):

0.37
Direction of Rotation:

Reversible
DE Bearing:

SAB
ODE Bearing:

SAB
Duty:

CONT., Air Over
Phase(s):

Single
Shaft Diameter:

0.5"
Shaft Length:

3.14"
Mounting Arrangement:

Resilient Mount
Starting Methods:

DOL
Motor Standards:

NEMA
Front Face Code:

Standard
AC/DC

AC
