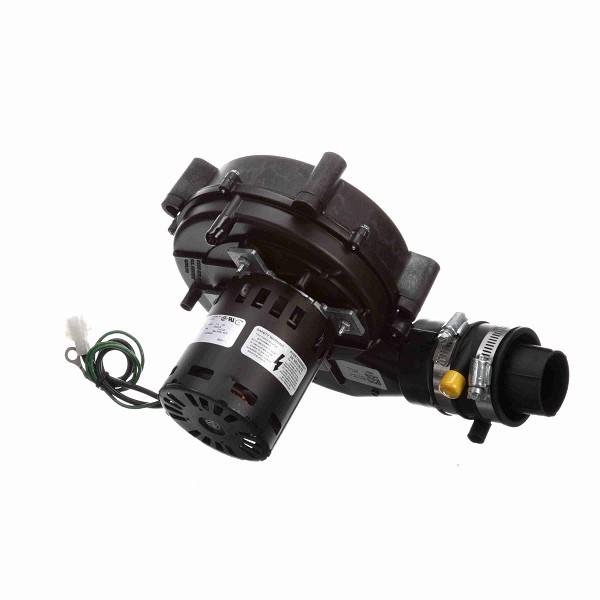

A225 – FASCO – 702111874, 1/15HP, 3200RPM, 115V, 1SP, 3.3″MOTOR, 2.25A, CWLE, SLV

A225 – Fasco
York Furnace Draft Inducer/Blower, Shaded Pole,
1/15HP, 115V, 2.25A, 3.3″ MotorBody, 1Spd, CWLE,
Catalog Num.: 024-34558-000
Catalog Name: A225

Output (HP): 1/15
Output(kW): 0.05
Voltage: 115
Phase(s): Single
Current (RPM): 3200
Current: 2.25
Num. Of Speeds: Single
Insulation Class: B
Enclosure: Open Air Over
Frame: 3.3″
Freq. (Hz): 60.0
Max. Ambient Temp.: 40*C3.3″

Cross-Reference:
York: GM9S,17503
Fasco: 7121-10121, 702111577, 702111577S, 024-34558-000, 024-27638-000, 702111830, RFB225

Weight	6 lbs
Manufacturer:	Fasco
Agency Approval:	CSA, UL
Voltage:	115
Current:	2.25
RPM:	3200
Frame:	3.3"
Enclosure:	OPEN
Frequency:	60.0
Model/Family/Series/Purpose	Shaded Pole, Draft Inducer/Blower
Frame Material:	Rolled Steel
Insulation Class:	B
Number of Speeds:	Single
Output (kW):	50
Direction of Rotation:	CWLE
DE Bearing:	Sleeve Bearing
ODE Bearing:	Sleeve Bearing
Duty:	CONT
Phase(s):	1
Length:	12
Weight:	6.0
Width:	10.3
Height:	8
Mounting Arrangement:	Round Body, Braket
Starting Methods:	DOL
Motor Standards:	NEMA
