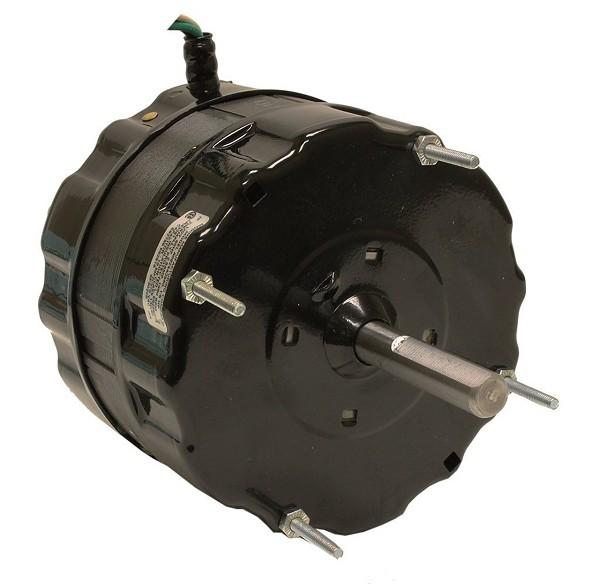

MODINE – 1/6HP, 115V, 1050RPM, 2.5A, CWSE 5″ diameter UNIT HEATER
Availability: 6 in stock
$592.47
Availability: 6 in stock
Modine – DB3G001 DE3J044N
1/6HP, 115V, 60Hz, 1100RPM, 2.5A, 5″ Dia.
Horse Power: 1/6 HP
Volts: 115 V
Current: 2.5 A
Speed: 1050 RPM
Freq.: 60Hz
Frame: 5″ Diameter
Shaft Size: 1/2″ x 2-1/4″
Chassis length: 3.33″
Starting Method: Cap Start/Cap Run, Capacitor Included
Mounting Arrangement: 4 Stud
Thermal Protection: 2 wire leads 36″
Dir. Rotation: CWSE
Reference Numbers:
48A11T179, A0824A2962, A0824A3950, 9F30095
A0824A3950, A0824A2962, 9F30095A0391, 9F30225
| Weight | 11 lbs |
|---|---|
| Manufacturer: | PEMS |
| Agency Approval: | CSA |
| HP: | 0.0833 |
| Voltage: | 115.0 |
| Current: | 1.70 |
| RPM: | 1600 |
| Frame: | 48Y |
| Enclosure: | OE |
| Frequency: | 60.0 |
| Model/Family/Series/Purpose | HVAC, Ventilation, Heating |
| Frame Material: | Rolled Steel |
| Insulation Class: | B |
| Number of Speeds: | Single |
| Service Factor: | 1.0 |
| Output (kW): | 0.062 |
| Direction of Rotation: | CW |
| Duty: | CONT |
| Phase(s): | Single |
| Shaft Diameter: | 0.50 |
| Shaft Runout: | 2.250 |
| Length: | 3.33 |
| Weight: | 12.00 |
| Width: | 3.0 |
| Height: | 3.0 |
| Mounting Arrangement: | Resilient Stud |
| Starting Methods: | Cap Start/Cap Run |
| Motor Standards: | NEMA |
| Leads (Qty, Size): | 2x |
| AC/DC | AC |
