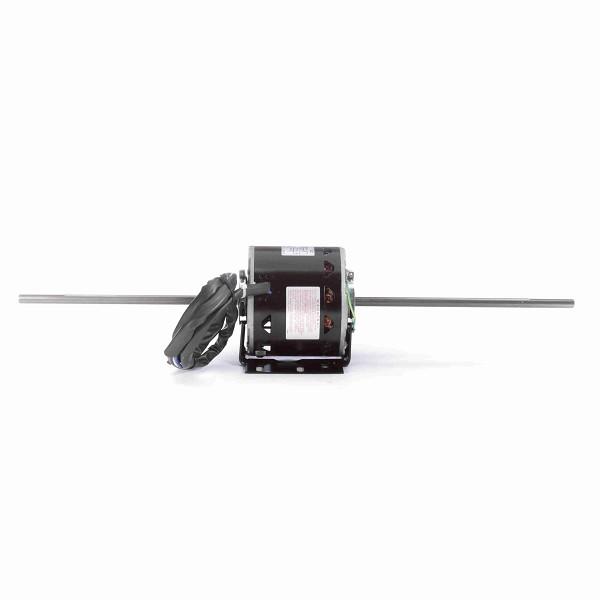

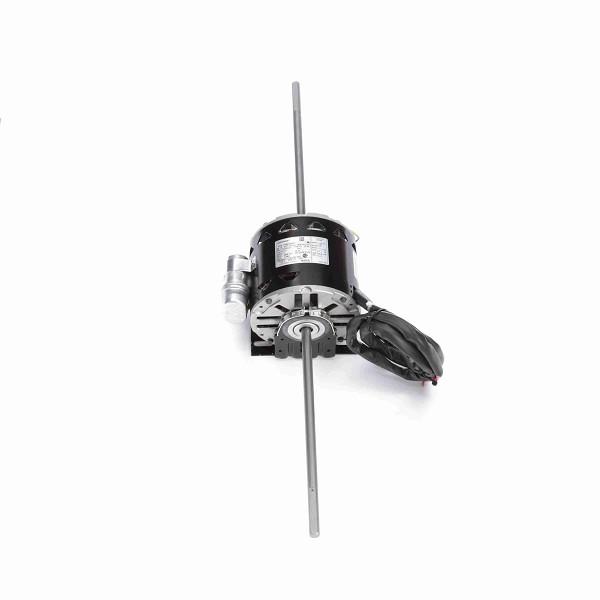

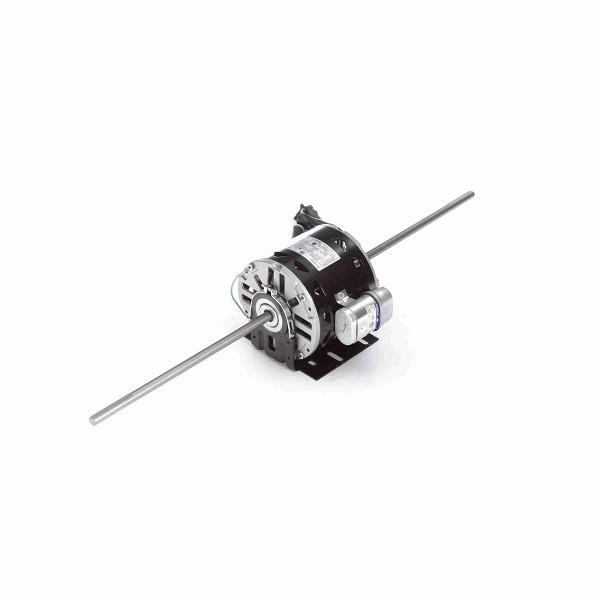

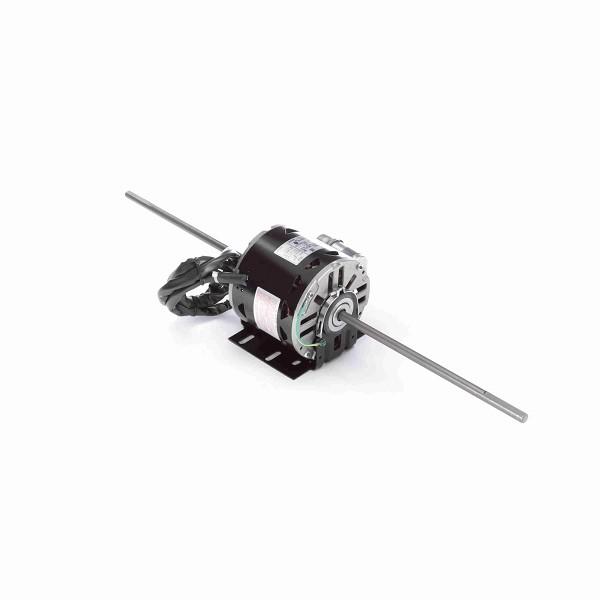

680A – Century
OEM Replacement Motor,
1/8 HP, 1 Ph, 60 Hz, 115 V, 775/650/525 RPM, 3 Speed, 48 Frame, OPEN – 680A
Catalog Num.: 680A

Phase(s): 1
Output HP: 1/8 Hp
Output KW: 0.10 kW
Voltage: 115 V
Speed (RPM): 775/650/525
Service Factor: 1
Frame: F48Y
Enclosure: Open Enclosed
Thermal Protection: Automatic
Efficiency: 42.8 %
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 1.5 A
Duty: Air Over
Insulation Class: B
Agency Recognition: CSA, UL
Number of Speeds: 3
Electrical Type: Permanent Split Capacitor
Starting Method: Across The Line
Poles: 8
Rotation: Counterclockwise Lead End
Mounting: Resilient Base
Motor Orientation: Horizontal
Frame Material: Rolled Steel
Shaft Type: Flat
Overall Length: 28.00 in
Frame Length: 4.25 in
Shaft Diameter: 0.500 in
Shaft Extension: 11.5 X.5X11.6 in

Cross-Reference:
AO Smith: F48Z30A01
Broan-NuTone: 97014211, 99770118
Century: 680
Trane: MOT-711
Universal: HE4F001, HE4G011, HE4F020
