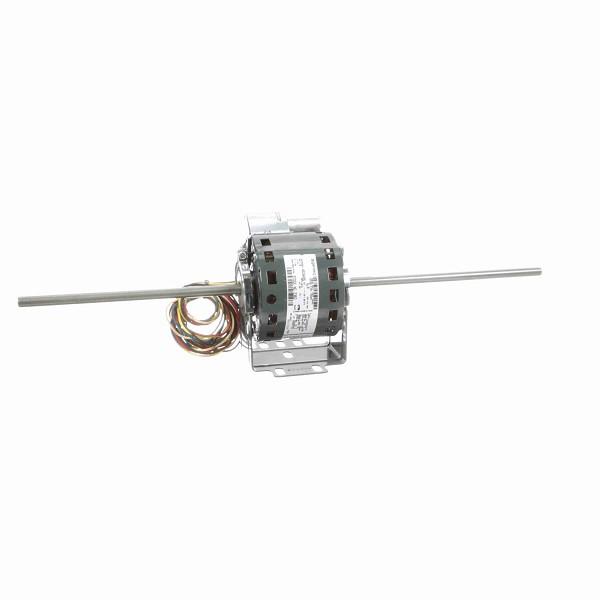

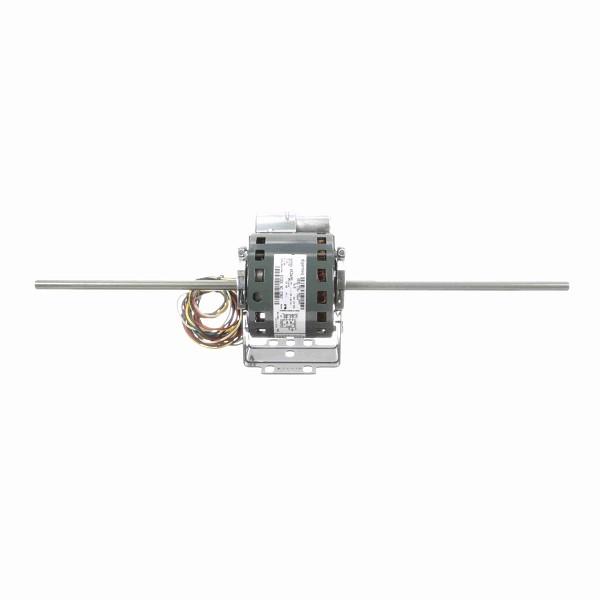

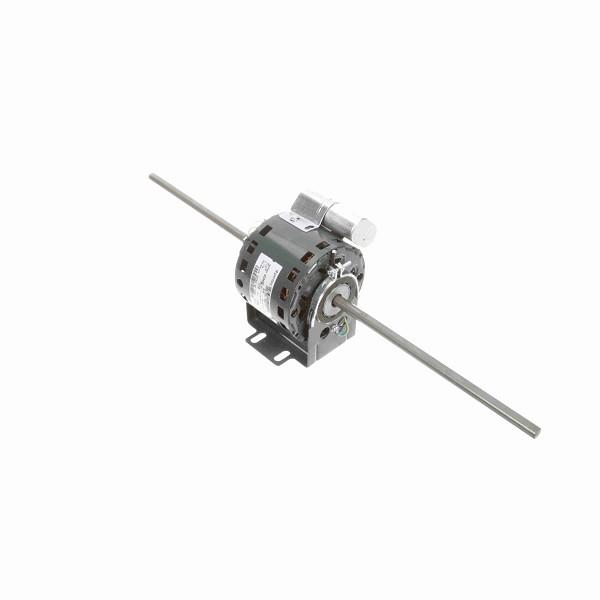

XactOne – 2362SX/RA1056 –
Direct Air-Con Replacement (OEM) –
Condenser, Exhaust Fan
1/10 HP, 1Ph, 60Hz, 1.69A, 1100RPM, 115V OAO
Catalog Number: 2362SX
Capacitor Number: 4MFD 370VAC

Phase(s): 1
Output HP: 1/10 Hp
Output KW: 0.07 kW
Voltage: 115 V
Speed: 1075 rpm
Service Factor: 1
Frame: 42
Enclosure: Open Air Over
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 1.69 A
Duty: Continuous Air Over
Insulation Class: B
Agency Recognition: UL, CSA
Number of Speeds: 4
Electrical Type: Permanent Split Capacitor
Poles: 6
Rotation: Clockwise
Mounting: Resilient Base
Motor Orientation: Horizontal
Frame Material: Rolled Steel
Shaft Type: Flat
Overall Length: 25.00 in
Frame Length: 3.66 in
Shaft Diameter: 0.500 in

Replaces
Greenheck: 301833,
Century: 89, UE89, 362, 362, 5KCP29CK8186S, D291, 2362, 2362S, CS89,362A, 2827, K048WGM4384013B, YSK120/25-6-73
