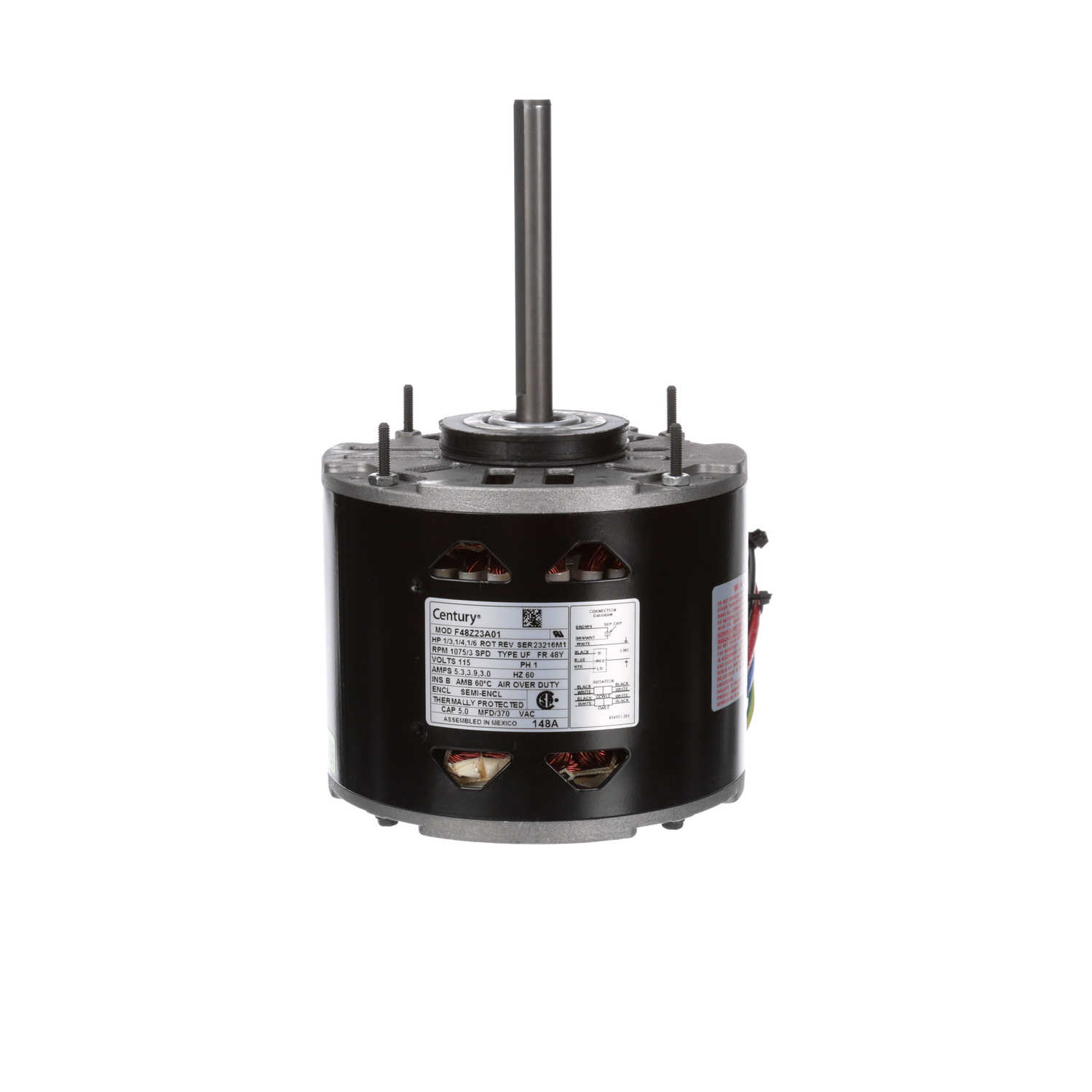

148A – Century – 1/3~1/6HP, 1075RPM, 3SPDs, 115V, 5.3~3A, F48Y, SEMI ENCL, 1Ph

148A – Century
Furnace Motor, Permenant Split Cap (PSC),
1/3HP, 1075RPM, F48YFr, Open, 115V,
Cap Included: 5uF@370V
Catalog Number: 148A

Output (HP): 1/3
Output (kW): 0.248
Speed (RPM): 1200
Voltage: 115V
Freq. (Hz): 60.0
Current: 5.3~3.0A
Frame: F48Y
Frame Material: Rolled Steel
Phase(s): 1
Num. of Poles: 6
Num. of Speed(s): 3x
Dir. of Rotation: Reversible
Enclosure: Open
Insulation Class: B
Mounting: Resilient / Stud
Weight: <12Lbs
Shaft Dia.: 0.5"
Shaft Runout: 4.55"

Cross Reference:

Weight	14 lbs
Manufacturer:	Century
Agency Approval:	CSA, UL
HP:	1/3
Voltage:	115
Current:	5.3~3.0A
RPM:	1075
Frame:	F48Y
Enclosure:	OPEN
Frequency:	60.0
Model/Family/Series/Purpose	Furnace Motor,
Frame Material:	Rolled Steel
Insulation Class:	B
Number of Speeds:	3x
Number of Poles:	6
Output (kW):	0.248
Direction of Rotation:	Reversible
DE Bearing:	SAB
ODE Bearing:	SAB
Duty:	CONT.
Phase(s):	Single
Shaft Diameter:	0.5"
Shaft Runout:	4.55"
Mounting Arrangement:	Resilient Mount, 4x Stud
Starting Methods:	DOL, Cap Start, PSC
Motor Standards:	NEMA
AC/DC	AC
