HX1-1/8 – LEESON – BUSHING –

HX1-1/8-KW, BUSHING, LEESON, 122054

Availability: 4 in stock

SKU HX1-1/8 Categories Accessories, Pulleys, Sheave Brand: Leeson, Regal-Rexnord

$26.35

Availability: 4 in stock

HX1-1/8 – LEESON – BUSHING –

SKU HX1-1/8 Categories Accessories, Pulleys, Sheave Brand: Leeson, Regal-Rexnord

HX1-1-1/8 – LEESON

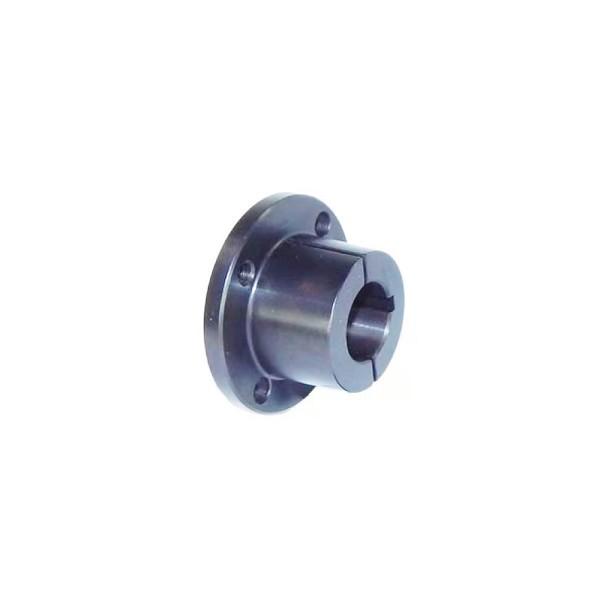

Split Taper Bushing, H-Series, 1.1250″ Bore, 2.5″ Flange, O.D.1.25″
Cast Iron – 122054

Barrel Diameter (L.E.): 1.6250 in
Bolt Circle Diameter: 2.0 in
Bore Diameter: 1.125 in
Bore Type: Finished w/ Keyway
Bushing Size: H
Flange Outside Diameter: 2.50 in
Flange Thickness: 0.25 in
Keyway Size: 1/4 x 1/8 in
Length of Bore: 1.25 in
Material: Cast Iron
Mounting Type: Conventional or Reverse
Number of Bolt Holes: 2

Manufacturer:	Leeson
Model/Family/Series/Purpose	Split Taper Bushing, H-Series
Frame Material:	Cast Iron
Length:	1.25"
Width:	1.125"
Height:	2.5"
Mounting Arrangement:	Finished Bore, Key'ed, Bolt Holes
