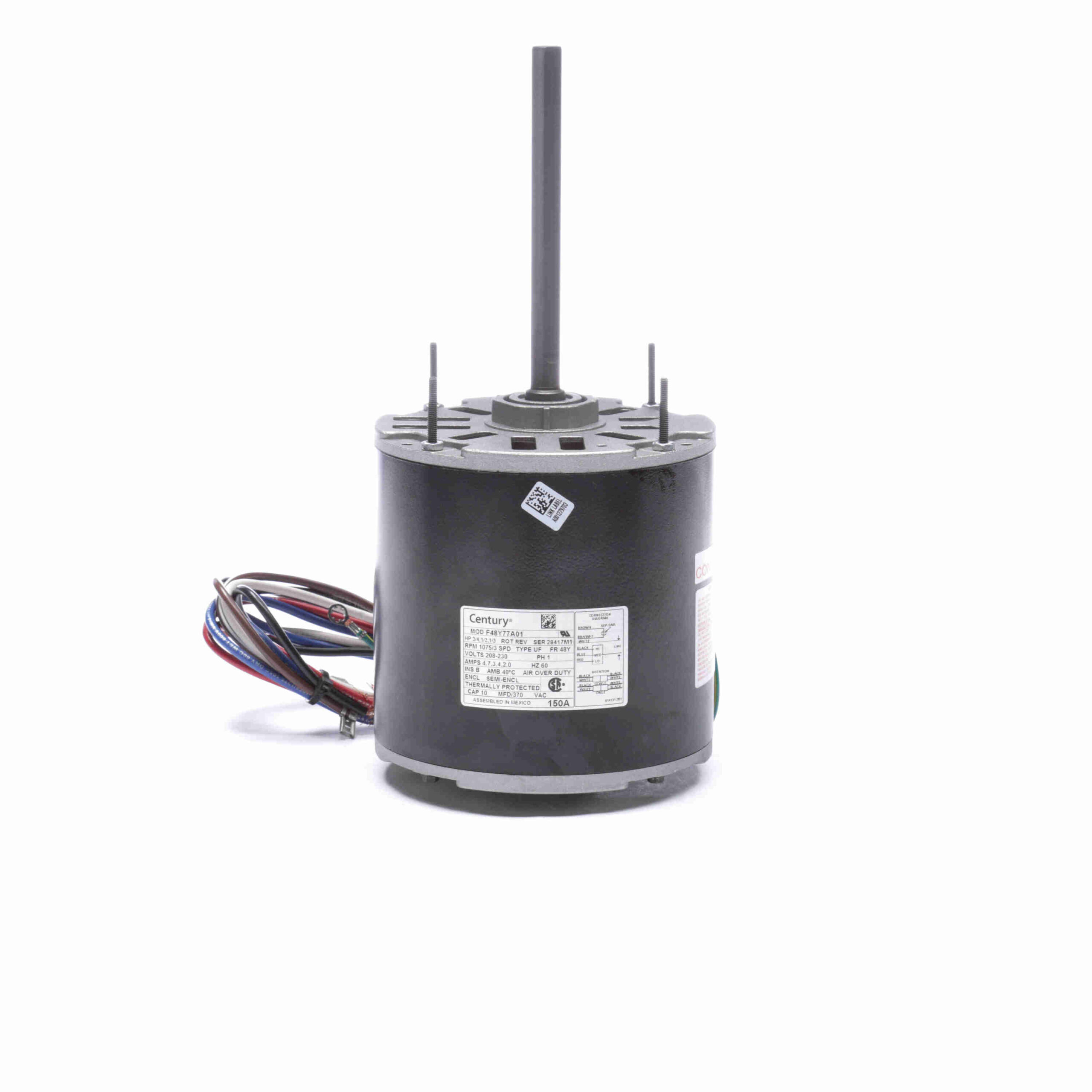

150A – Century – 3/4~1/3HP, 1075RPM, 3SPDs, 208-230V, 4.7~2A, F48Y, SEMI ENCL, 1Ph

150A – Century
3/4HP, 1075RPM, F48YFr, Open, 208-230V,
Furnace Motor,
Capacitor Included:10uF
Catalog Number: 150A

Output (HP): 3/4
Output (kW): 0.56
Speed (RPM): 1200
Voltage: 208-230V
Freq. (Hz): 60.0
Current: 4.7~2.0A
Frame: F48Y
Frame Material: Rolled Steel
Phase(s): 1
Num. of Poles: 6
Num. of Speed(s): Single
Dir. of Rotation: Reversible
Enclosure: Open Air Over
Insulation Class: B
Mounting: Stud
Weight: <19Lbs
Shaft Dia.: 0.5"
Shaft Runout: 6.0"

Cross Reference:
Century: EM3590, EM3467

Weight	19 lbs
Manufacturer:	Century
Agency Approval:	CSA, UL
HP:	3/4
Voltage:	208~230V
Current:	4.7~2.0A
RPM:	1075
Frame:	F48Y
Enclosure:	Open Air Over
Frequency:	60.0
Model/Family/Series/Purpose	Furnace Motor
Frame Material:	Rolled Steel
Insulation Class:	B
Number of Speeds:	Single
Number of Poles:	6
Output (kW):	0.56
Direction of Rotation:	Reversible
DE Bearing:	SAB
ODE Bearing:	SAB
Duty:	Air Over, CONT.
Phase(s):	Single
Shaft Diameter:	0.5"
Shaft Runout:	6.0"
Mounting Arrangement:	Stud 4x
Starting Methods:	DOL, Cap Start, PSC
Motor Standards:	NEMA
Leads (Qty, Size):	5x
AC/DC	AC
