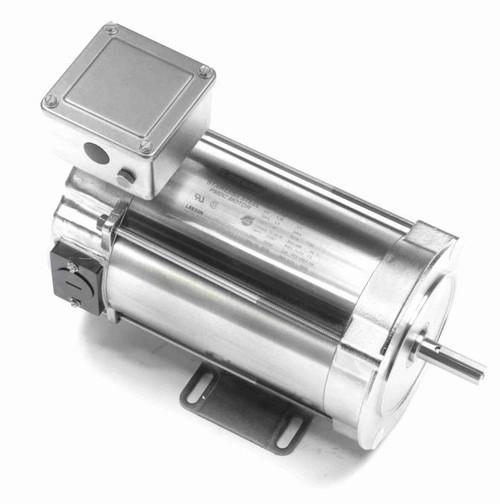

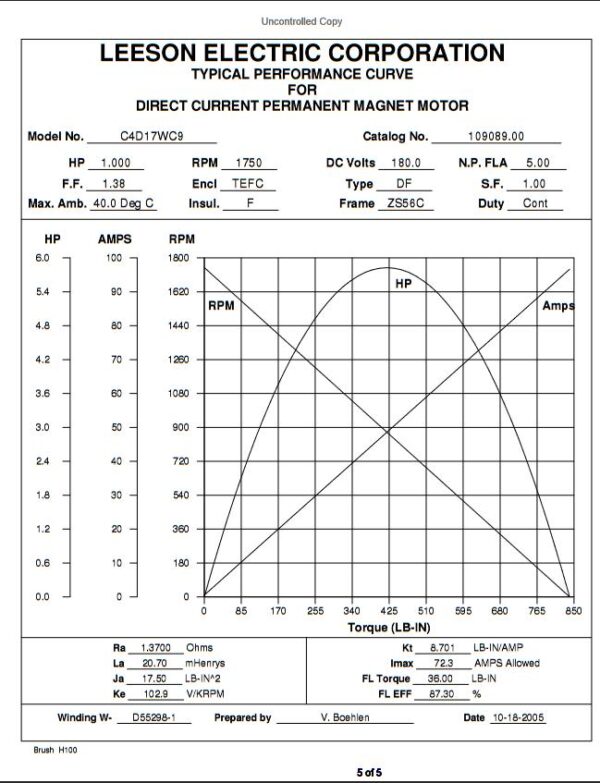

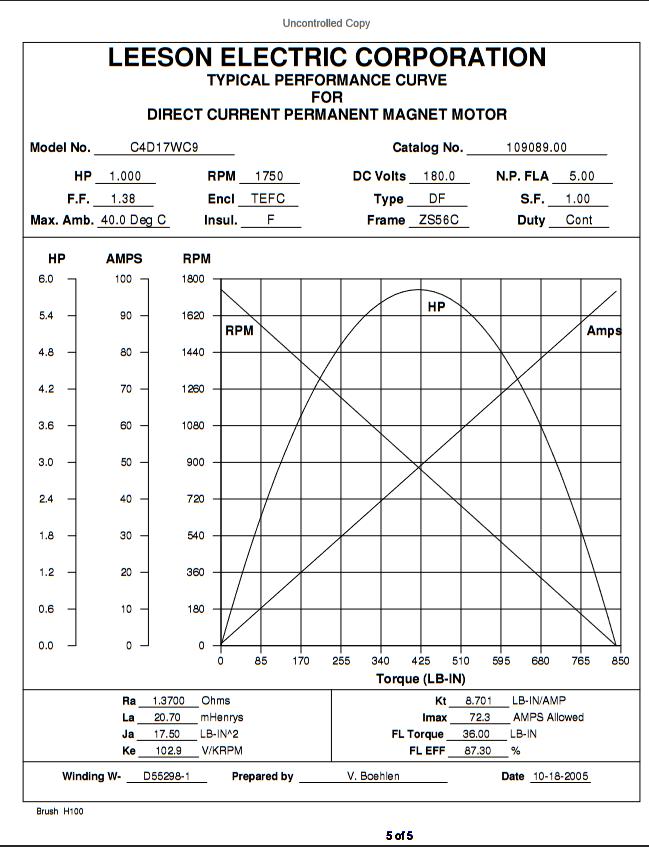

109089 – LEESON
General Purpose, Washdown
1.0HP, 1800RPM, DC Motor, 180VDC, S56C

Catalog Number: 109089.00
Model Number: C4D17WC9
Output HP: 1 Hp
Output KW: 0.75 kW
Voltage: 180 V
Current: 5.0 A
Speed: 1750 rpm
Service Factor: 1
Efficiency: 85.3 %
Duty: Continuous
Insulation Class: F
Frame: ZS56C
Enclosure: Totally Enclosed, Fan Cooled
Thermal Protection: No Protection
Max Ambient Temperature: 40 °C
Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6203
UL: Recognized
CSA: Y
CE: N
Rotation: Reversible
Mounting: Round
Overall Length: 13.87 in
Frame Length: 9.63 in
Shaft Diameter: 0.625 in
Shaft Extension: 2.05 in
Torque: 36 LB-IN

All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
All Washdown Duty motors have Class F Insulation
Full fact nameplate is laser etched on the motor frame
