![941071 - [NLA] - MOTOR ASSY (MOTOR AND BRACKET) WA6500-C](https://emshamilton.com/wp-content/uploads/2024/10/10941071_1_103f.webp)

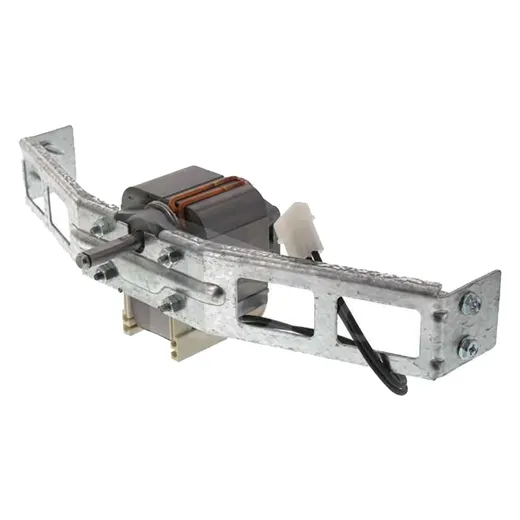

MOTOR ASSY (MOTOR AND BRACKET) WA6500-C
Out of stock
$174.48
Out of stock
10941071 – Broan Nutone
Range Hood Motor & Bracket Assembly,
S10941071
Frame Type: C Frame
Shaft: 5/16″ X 1-3/8″.
Volts: 120V
Current: 1.5A
Phase(s): Single
Dir.: CCW (SE)
Speed (RPM): 3000
Bearings: Sleeve Bearings (Non Replaceble)
K7448000 & J238-138-1368, QT230 & QT236 & Nutone WA6530
Assembly & Bracket for QT230, QT236
Broan BRO10941071 10941071
| Manufacturer: | Broan |
|---|---|
| Voltage: | 115 |
| Current: | 1.4 |
| RPM: | 3000 |
| Frame: | C |
| Frequency: | 60 |
| Model/Family/Series/Purpose | Range Hood |
| Number of Speeds: | Single |
| Direction of Rotation: | CCWSE |
| DE Bearing: | Sleeve Bearings |
| ODE Bearing: | Sleeve Bearings |
| Phase(s): | Single |
| Shaft Diameter: | 5/16" |
| Shaft Length: | 1-3/8" |
| Starting Methods: | DOL |
| AC/DC | AC |
