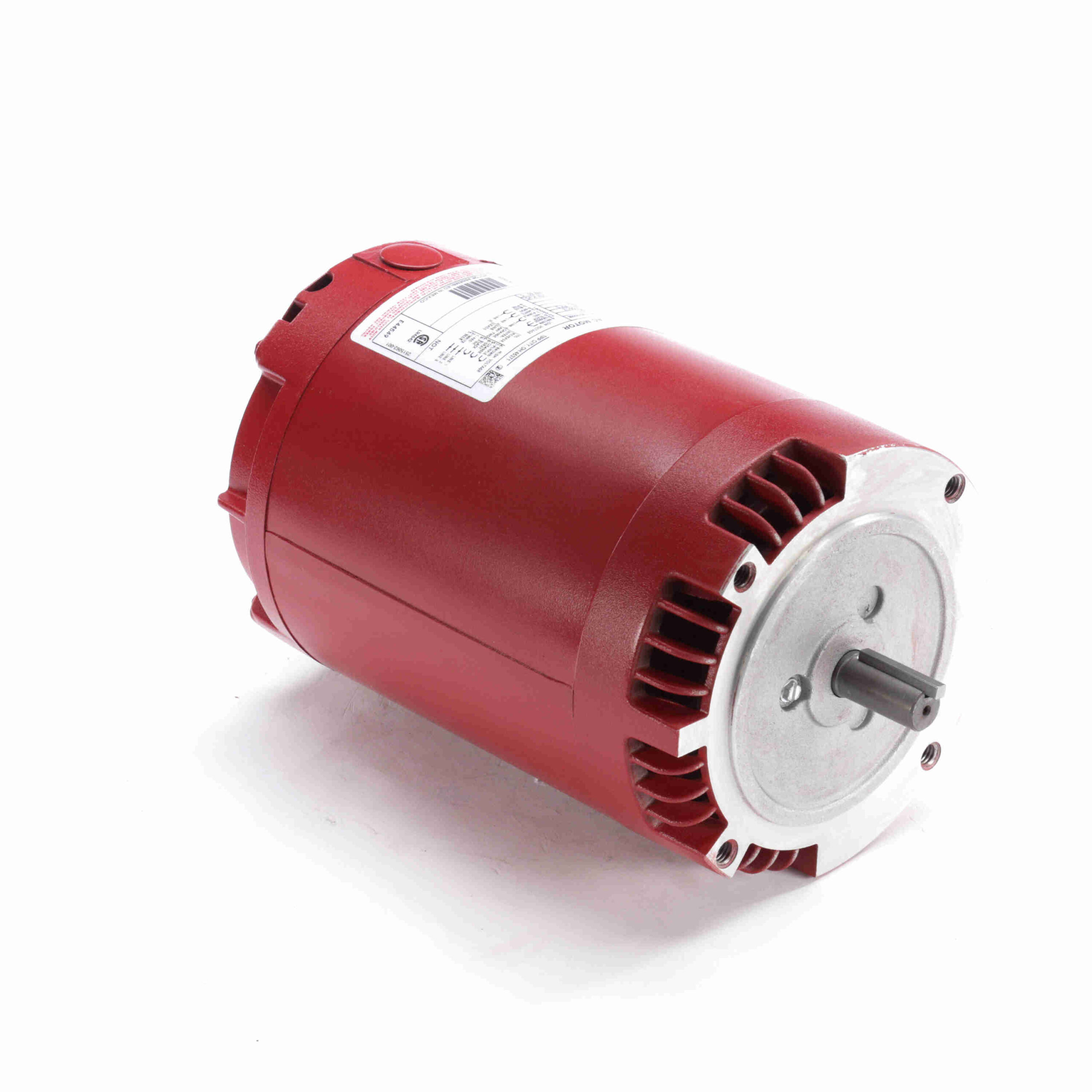

ARMSTRONG 816678-069

Reversible
Cushion ring, no base and C-face
No protector

Output HP: 1.5 Hp
Output KW: 1.1 kW
Frequency: 60 Hz
Voltage: 208-230/460 V
Current: 5.7-5.6/2.8 A
Speed: 1725 rpm
Service Factor: 1.35
Phase: 3
Duty: Continuous
Insulation Class: B
Frame: LA56CZ
Enclosure: Drip Proof
Thermal Protection: No Protection
Max Ambient Temperature: 50 °C
UL: Recognized
CSA: Y
Number of Speeds: 1
Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
Starting Method: Across The Line
Poles: 4
Rotation: Reversible Counter-clockwise
Mounting: Round
Frame Material: Rolled Steel
Shaft Type: Keyed
Overall Length: 11.62 in
Frame Length: 6.25 in
Shaft Diameter: 0.625 in
Shaft Extension: 1.37 in
