38 WATT, 230V, CWSE, UNIT BEARING
Availability: 6 in stock
$253.44
Availability: 6 in stock

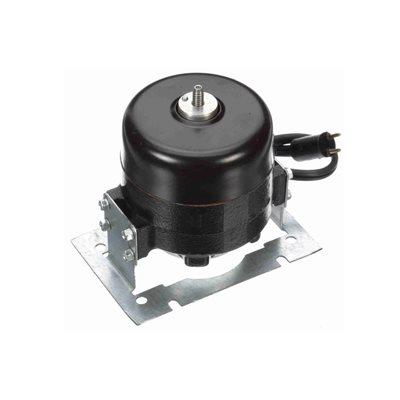

5R023 – MORRILL MOTORS – [NLA]
Refrigeration Motor, ARKTIC SSC, ECM,
1/20HP, 230V, 1550RPM, TEOA, 0.45A, CCWLE,
Product Code: 5R023
Output (HP): 1/20
Output (kW): 0.04
Speed (RPM): 1550
Voltage (V): 230
Current (A): 0.45
Frame: Unit Bearing
Phase(s): Single
Poles: 4
Service Factor: 1.0
Duty: Cont.
Enclosure: TEAO
Material: Cast Iron
Mounting: Bracket
Inverter Ready: NO, Internal PCM
Cross-Reference:
R6711,
HUSSMANN: 4410546
| Weight | 3 lbs |
|---|---|
| Manufacturer: | Morrill Motors |
| Agency Approval: | CSA, UL |
| HP: | 1/20 |
| Voltage: | 208.0~230.0 |
| Current: | 0.45 |
| RPM: | 1500 |
| Frame: | Unit Bearing |
| Enclosure: | TEAO |
| Frequency: | 60.0 |
| Model/Family/Series/Purpose | Refrigeration, HVAC, Furnace |
| Frame Material: | Cast Iron |
| Insulation Class: | B |
| Number of Speeds: | Single |
| Number of Poles: | 4 |
| Service Factor: | 1.0 |
| Output (kW): | 0.038 |
| Direction of Rotation: | CCW |
| VFD/Inverter Ready: | No |
| Duty: | CONT |
| Phase(s): | Single |
| Shaft Diameter: | 0.250 |
| Shaft Length: | 0.33 |
| Length: | 4.60 |
| Weight: | 4.20 |
| Width: | 6.0 |
| Height: | 4.0 |
| Mounting Arrangement: | Bracket |
| Starting Methods: | DOL |
| Motor Standards: | NEMA |
| Front Face Code: | Standard |
| AC/DC | AC |
