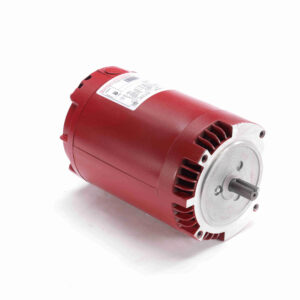

PUMP EXEC 4HP 56FR 2 SPD 2″
Availability: 1 in stock
$653.89
Availability: 1 in stock
Waterway Plastics – 3721621-1D
Executive Pump, Hottub Pump,
4HP, 56F, 2Spd, 2″/2″ Unions, 3450/1725 RPM, 12/4.4A, 240V
Output (HP): 4HP
Output (kW): 3.236
Voltage: 240V
Current: 12/4.4A
Num. of Speeds: 2
Speed (RPM): 3450/1725
Frequency: 60Hz
Frame: 56C
Enclosure: ODP
Seals upgraded to Viton
Cross Reference:
Waterway OEM: 3721621-1D, PF-30-2N22
Gecko: XP2e Model 0533-4012, GK-0800-3990000
| Manufacturer: | WATERWAYS PLASTICS |
|---|---|
| HP: | 4.0 |
| Voltage: | 240 |
| Current: | 12/4.4A |
| RPM: | 3500/1800 |
| Frame: | 56C |
| Enclosure: | ODP |
| Frequency: | 60Hz |
| Model/Family/Series/Purpose | Pool Pump |
| Frame Material: | Rolled Steel |
| Number of Speeds: | Two |
| Number of Poles: | 4/2 |
| Service Factor: | 1.15 |
| Output (kW): | 2.98 |
| Direction of Rotation: | CCW |
| Duty: | CONT. |
| Phase(s): | Single |
| Shaft Diameter: | 0.625 |
| Mounting Arrangement: | Flange, F1 |
| Starting Methods: | DOL, Cap Start, Cap Run, Split Cap |
| Motor Standards: | NEMA |
| Front Face Code: | Flange |
| AC/DC | AC |
