1088 - NIDEC - 2HP, 575V, 1725RPM, (AUTO OVRLD) 56HZ Fr, HVAC

1088 – NIDEC – 2HP, 575V, 1725RPM, (AUTO OVRLD) 56HZ Fr, HVAC

2HP 575V 1725RPM (AUTO OVRLD) 56HZ FR

Availability: 1 in stock

SKU 1088 Categories , , , , , , Tags , , , , , , , , , , , , , , Brand:

$842.80

Availability: 1 in stock

1088 – NIDEC – 2HP, 575V, 1725RPM, (AUTO OVRLD) 56HZ Fr, HVAC

SKU 1088 Categories , , , , , , Tags , , , , , , , , , , , , , , Brand:

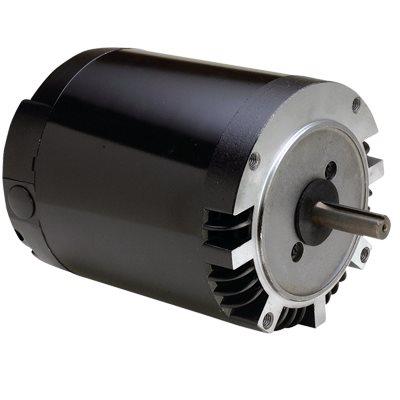

1088 – Nidec
Furnace Motor, Ventor,
2HP, 1725RPM, 56Fr, ODP, 575V, 3Ph
Catalog Number: 1088
Model Number: P063WNF4794015B

Output (HP): 2
Output (kW): 1.5kW
Speed (RPM): 1800
Voltage: 575V
Current: 2.7A
Locked Rotor Current: 16.6A
Frame: 56
KVA: L
Num. Of Poles: 4
Phase(s): 3
Enclosure: ODP
Efficientcy: 86.5%
Insulation Class: B
Material: Rolled Steel
Mounting: Rigid
Length: <12.156"
Weight: <34Lbs
Bearings:
DE: 6203
ODE: 6205

Cross Reference:
P63PYEKZ-5013
103202-06 80W78
5K49UN8053X HD56DL575

Weight 31 lbs
Manufacturer:

Nidec
Agency Approval:

CSA, UL
HP:

2.0
Voltage:

575V
Current:

2.7A
RPM:

1725
Frame:

56
Enclosure:

ODP
Frequency:

60Hz
Model/Family/Series/Purpose

Furnace Blower
Frame Material:

Rolled Steel
Insulation Class:

B
Number of Speeds:

Single
Efficiency:

86.5%
Number of Poles:

4
Service Factor:

1.15
Output (kW):

1.5
KVA:

L
Direction of Rotation:

Reversible
DE Bearing:

6203
ODE Bearing:

6205
Duty:

CONT.
Phase(s):

3
Shaft Diameter:

0.875"
Shaft Length:

2.25"
Length:

12.156"
Weight:

34
Mounting Arrangement:

Rigid Base
Starting Methods:

DOL
Motor Standards:

NEMA
Front Face Code:

Standard
AC/DC

AC
